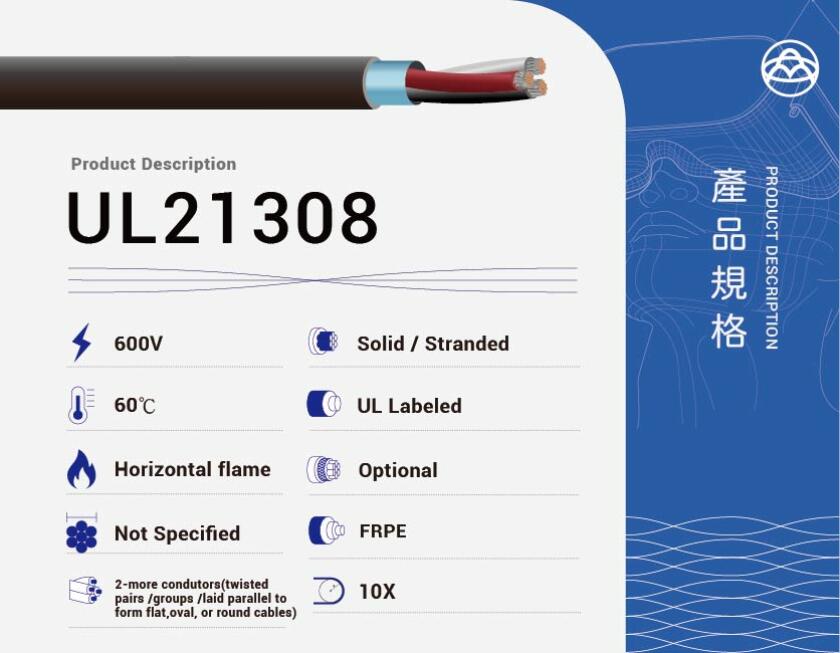

UL21308 multi-conductor cable, 600V and 60°C rated, with FRPE jacket and AWM insulation, offers flexible, flame-resistant wiring for industrial electronics


UL21308 FRPE Insulated Cable – 60°C / 600V Multi-Conductor Wire for Internal Electronic Applications

UL21308 is a UL-certified multi-conductor cable designed for the internal wiring of electronic equipment. Rated for 60°C and 600V, this cable features solid or stranded copper conductors, insulation in accordance with the manufacturer’s AWM procedure, and an extruded FRPE jacket. It complies with the Horizontal Flame Test under UL 758 AWM standards, offering reliable flame resistance and flexibility for industrial and commercial use.


Key Features

  • Conductor: Solid or stranded copper (minimum 40 AWG)

  • Insulation: Labeled or complies with the manufacturer's AWM Procedure

  • Assembly: Two or more insulated singles or groups of singles, twisted or laid parallel to form flat, oval, or round cable

  • Jacket: Extruded FRPE

    • Minimum average thickness: 16 mils

    • Minimum thickness at any point: 13 mils

  • Temperature Rating: 60°C

  • Voltage Rating: 600V

  • Flame Resistance: Passes Horizontal Flame Test

  • Standard: UL 758 AWM Style 21308

  • Application: Internal wiring of electronic equipment


Applications

  • Internal wiring in consumer and industrial electronic devices

  • Signal transmission in computer peripherals

  • Control wiring in automation and instrumentation equipment

  • Applications requiring compact, flame-rated flexible wiring

External Technical Reference

UL iQ™ Style Page – UL21308
