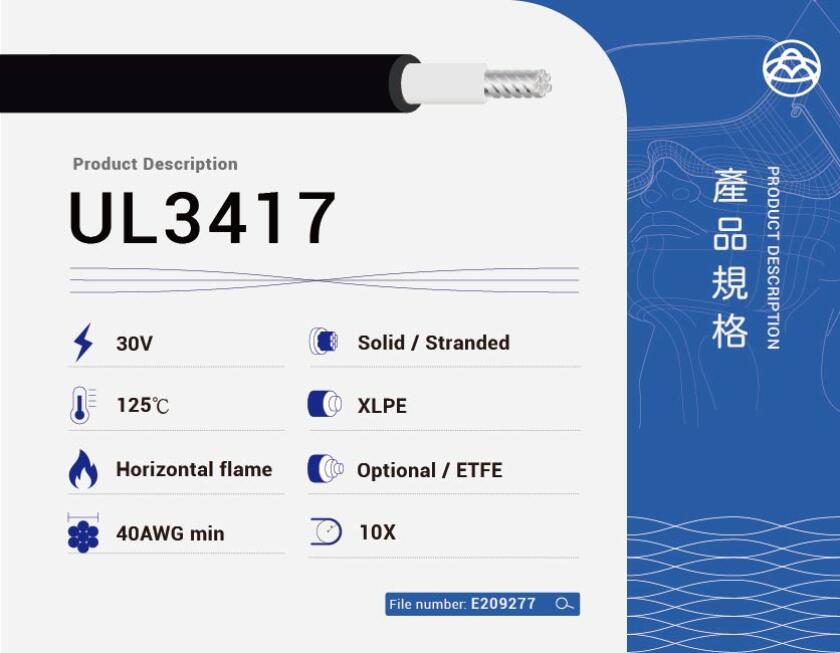

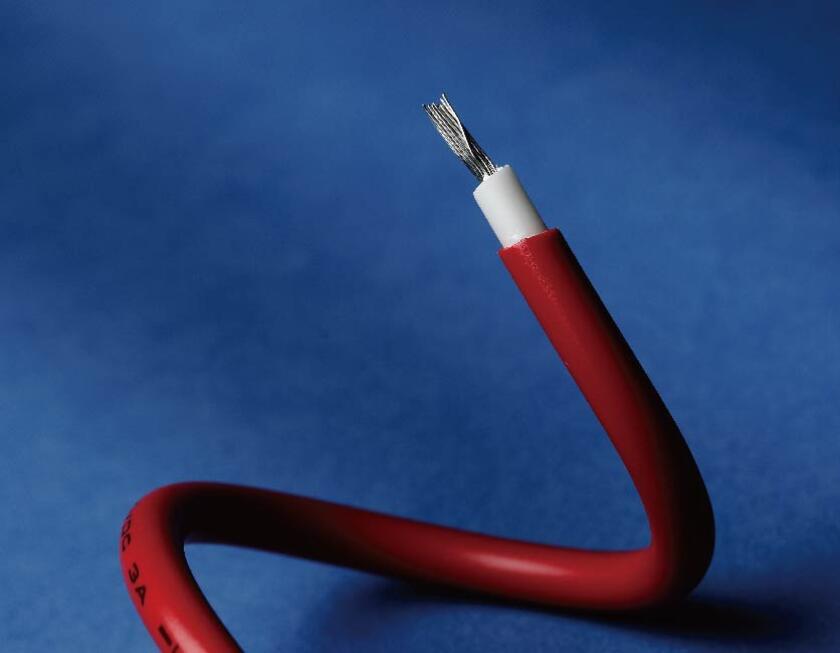

UL3417 XLPE Insulated Wire
UL3417 single-conductor wire with XLPE insulation, UL-certified and rated 125°C/30V. Provides heat resistance, voltage stability, and flame performance for internal wiring.
UL3417 XLPE Insulated Wire – 125°C / 30V Hook-Up Wire for Electronic Equipment
UL3417 is a UL-certified single-conductor wire insulated with cross-linked polyethylene (XLPE). Rated for 125°C and 30V, this wire is designed for internal wiring in electronic devices where heat resistance, voltage stability, and flame performance are critical.
Features
Conductor: Solid or stranded bare or tinned copper, available in sizes down to 40 AWG
Insulation: Extruded solid or foamed XLPE, with a minimum thickness of 4 mils (0.10 mm) and a maximum of 100 mils (2.54 mm)
Optional Jacket: Extruded ETFE jacket with a minimum thickness of 4 mils (0.10 mm)
Temperature Rating: Up to 125°C
Voltage Rating: 30V
Flame Resistance: Passes horizontal flame test requirements
Standards: Complies with UL 758 Appliance Wiring Material (AWM) Style 3417
Usage: Designed for internal wiring in electronic equipment
Common Applications
Internal wiring in electronic devices and instrumentation
Applications requiring high heat resistance and low-voltage performance
Internal connections in compact or precision electronic systems
External Technical Reference
Need assistance selecting the right wire?
Our technical team is ready to help you choose the best UL3417 cable for your project.
