UL10937 XLPE Insulated Wire

UL10937 single-conductor wire with halogen-free XLPE insulation, UL-certified and rated 105°C/300V. Offers thermal stability, flame resistance, and durability for internal wiring.


UL10937 XLPE Insulated Wire – 105°C / 300V Halogen-Free Hook-Up Wire for Internal Wiring

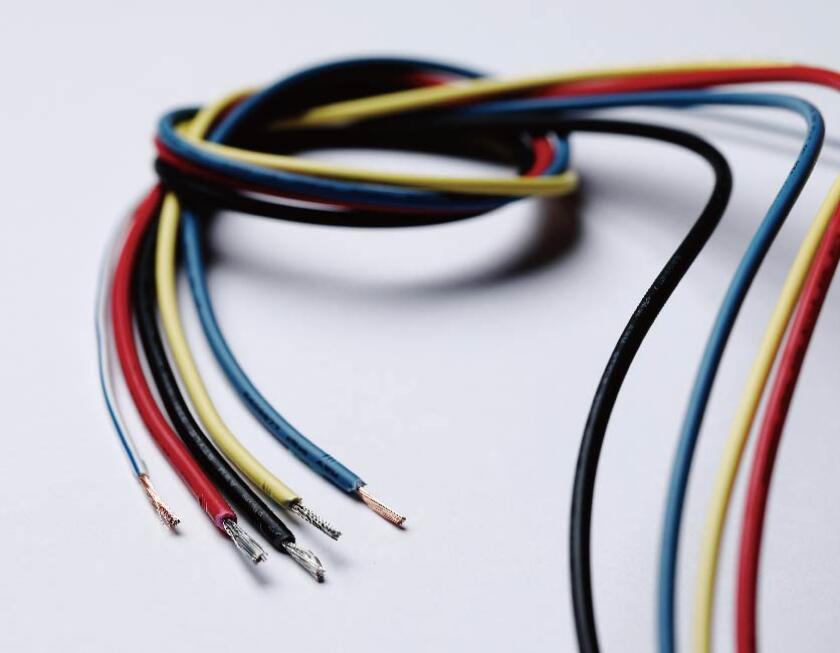

UL10937 is a UL-certified single-conductor wire featuring cross-linked polyethylene (XLPE) insulation and jacket. Rated for 105°C and 300V, it is designed for internal wiring applications in electronic and electrical equipment. The halogen-free XLPE insulation provides excellent thermal stability, mechanical strength, and flame resistance.


Features

  • Conductor: Stranded bare or tinned copper

  • Insulation: Color-coded XLPE insulation with XLPE jacket

  • Temperature Rating: 105°C

  • Voltage Rating: 300V

  • Standards: Complies with UL 758 Appliance Wiring Material (AWM) standards

  • Halogen-Free: Suitable for environments requiring low smoke and toxicity

  • Applications: Internal wiring of electronic and electrical equipment


Common Applications

  • Internal wiring in electronic devices and electrical equipment

  • Control panels and switchgear assemblies

  • Environments requiring halogen-free and flame-retardant wiring solutions
