UL21281

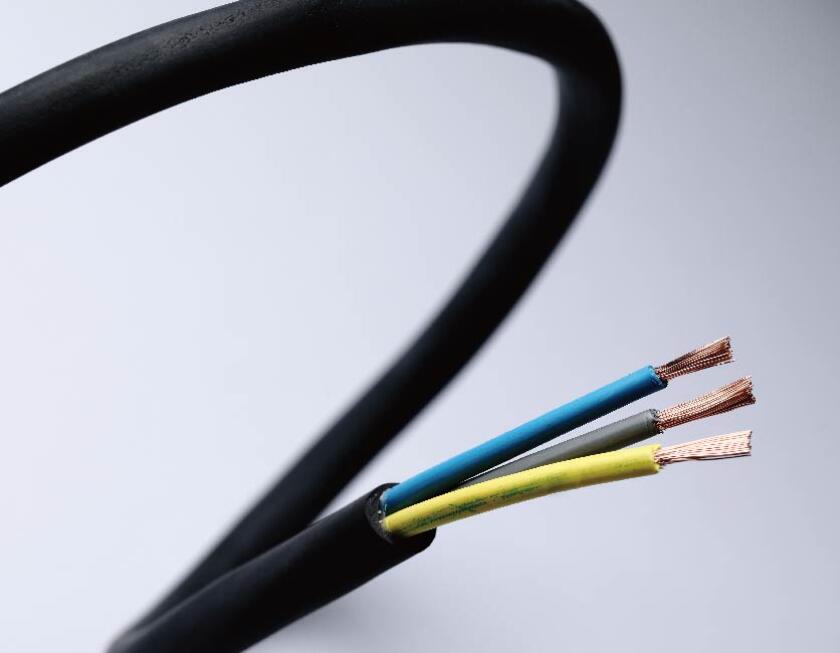

UL21281 multi-conductor cable, 300V and 80°C rated, with FRPE insulation and jacket, delivers flexible, flame-resistant external wiring for electronics.


UL21281 FRPE Insulated Cable – 80°C / 300V Multi-Conductor Wire for External Interconnection Applications

UL21281 is a UL-certified multi-conductor cable designed for the external interconnection of electronic equipment. Rated for 80°C and 300V, this cable features solid or stranded tinned or bare copper conductors, flame-retardant FRPE insulation, and an extruded FRPE jacket. It complies with the Cable Flame Test under UL 758 AWM standards, making it suitable for applications requiring flexibility and flame resistance.


Key Features

  • Conductor: Solid or stranded tinned or bare copper (minimum 40 AWG)

  • Insulation: Complies with the manufacturer's AWM procedure (FRPE)

  • Assembly: Two or more conductors twisted or laid parallel to form flat, oval, or round cables

  • Shield: Optional aluminum mylar and/or tinned copper wire braid shield

  • Jacket: Extruded FRPE

  • Temperature Rating: 80°C

  • Voltage Rating: 300V

  • Flame Resistance: Passes Cable Flame Test

  • Standard: UL 758 AWM Style 21281

  • Application: External interconnection of electronic equipment


Applications

  • External wiring in electronic devices

  • Signal transmission in computers and peripherals

  • Control wiring in industrial equipment

  • Applications requiring flexible and flame-retardant wiring solutions

 External Technical Reference

UL iQ™ Style Page – UL21281
