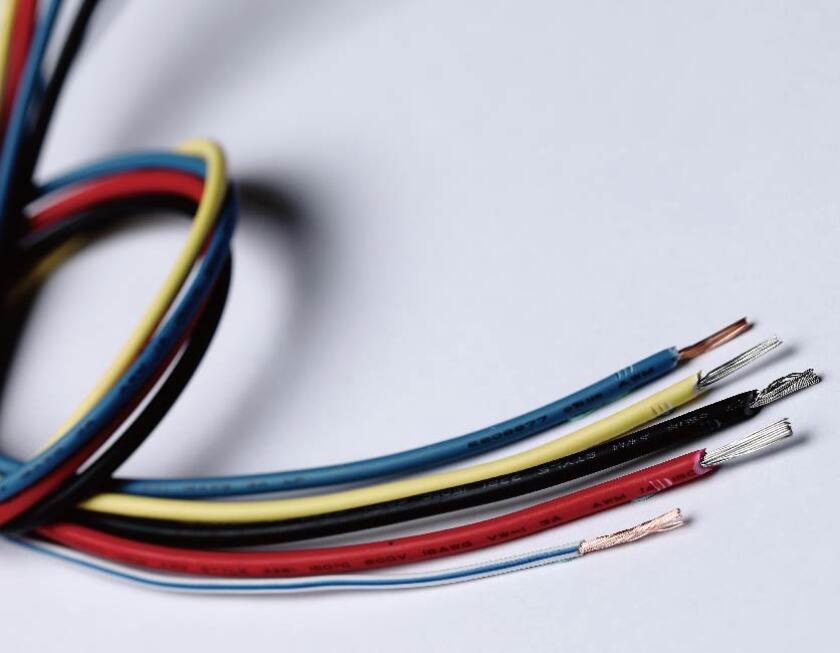

UL10368 XLPE Insulated Wire
UL10368 single-conductor wire with XLPE insulation, UL-certified and rated 105°C/300V. Provides heat resistance, flame retardancy, and reliable performance for industrial wiring.
UL10368 XLPE Insulated Wire – 105°C / 300V Hook-Up Wire for Internal Industrial Wiring
UL10368 is a UL-certified single-conductor wire insulated with cross-linked polyethylene (XLPE). Rated for 105°C and 300V, it is designed for internal wiring in industrial equipment, control panels, and electrical assemblies. This wire offers excellent heat resistance, electrical performance, and flame-retardant properties.
Features
Conductor: Solid or stranded, bare or tinned copper, available from 10 AWG to 40 AWG
Insulation: Extruded XLPE with an average thickness of 0.25 mm and minimum thickness of 0.20 mm
Temperature Rating: Up to 105°C
Voltage Rating: 300V AC
Flame Test Compliance: Passes VW-1, FT1, and FT2 vertical flame tests
Standards: UL 758, UL 1581, UL 2556
Application: Internal wiring in electrical and electronic equipment
Common Applications
Internal wiring in industrial machinery and control systems
High-voltage connections in distribution panels
Internal cabling for electrical components and assemblies
Suitable for high-temperature and flame-retardant wiring needs
External Technical Reference
Need help selecting the right wire?
Our technical support team is ready to assist you in choosing the most suitable UL10368 wire for your application.
