UL3133 Flexible Silicone Wire
UL3133 flexible high-temp wire with fine-stranded tinned copper and silicone insulation. Delivers heat resistance, flexibility, and reliable electrical insulation.
UL3133 Flexible Silicone Wire｜High-Temperature 150°C 600V Cable｜UL Certified

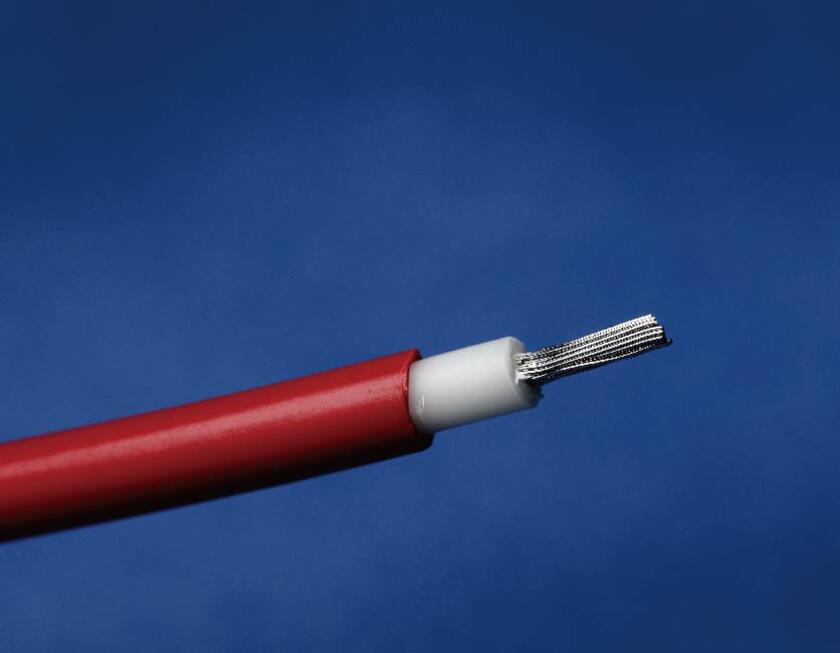

UL3133 is a flexible, high-temperature single-conductor wire featuring a fine-stranded tinned copper conductor and silicone rubber insulation. It is designed for applications requiring high flexibility, excellent heat resistance, and reliable electrical insulation under demanding conditions.
Key Features of UL3133 Flexible Silicone Rubber Wire
- Conductor: Fine-Stranded Tinned Copper
- Insulation: Silicone Rubber
- Rated Temperature: -60°C to +150°C
- Rated Voltage: 300V
- Flame Resistance: Passes Horizontal Flame Test; VW-1 available upon request
- Flexibility: Outstanding for tight spaces and dynamic motion environments
- Chemical and Aging Resistance: High resilience to oils, solvents, and thermal aging
Typical Applications for EV Control Systems, Robotics, and Industrial Wiring
- Internal control and signal wiring for high-temperature electronic devices
- Wiring for EV battery management systems (control circuits only)
- Internal flexible wiring in robotics and automation machinery
- Wiring for industrial heating units and thermal sensors
- Flexible control wiring solutions for laboratory instruments
Related Links
- Explore UL3135 Silicone Wire (200°C, 600V)
- Discover UL3132 Flexible Silicone Wire (150°C, 300V)
- Learn About UL3239 High-Voltage Silicone Wire (3kV)
Additional References
Need assistance selecting the right wire? Our technical team is ready to help you choose the best cable for your project.
