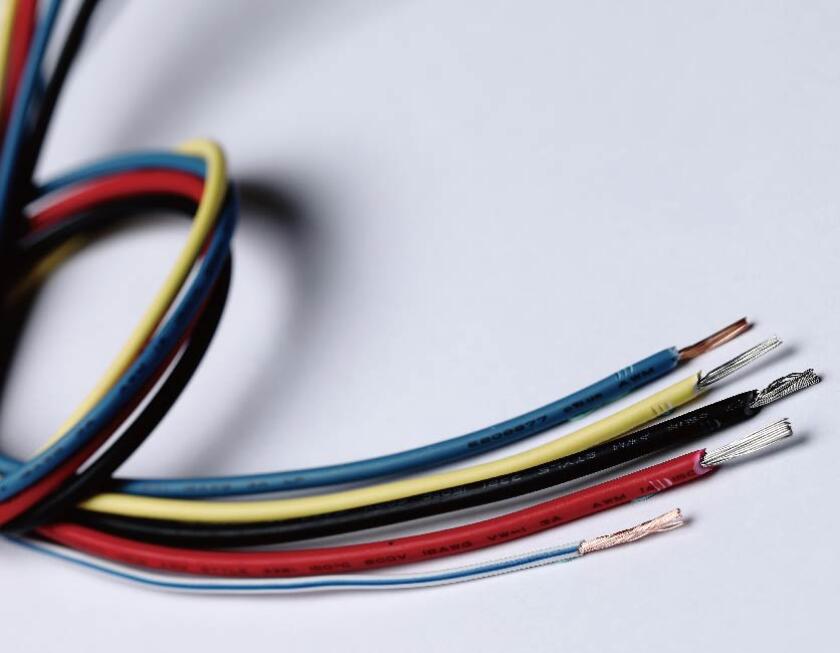

UL11683 PVC-Insulated Wire
UL11683 hook-up wire with PVC insulation, UL-recognized and rated 105°C/3000V. Durable, flexible, and safe wiring solution for appliances, control panels, and industrial machinery.

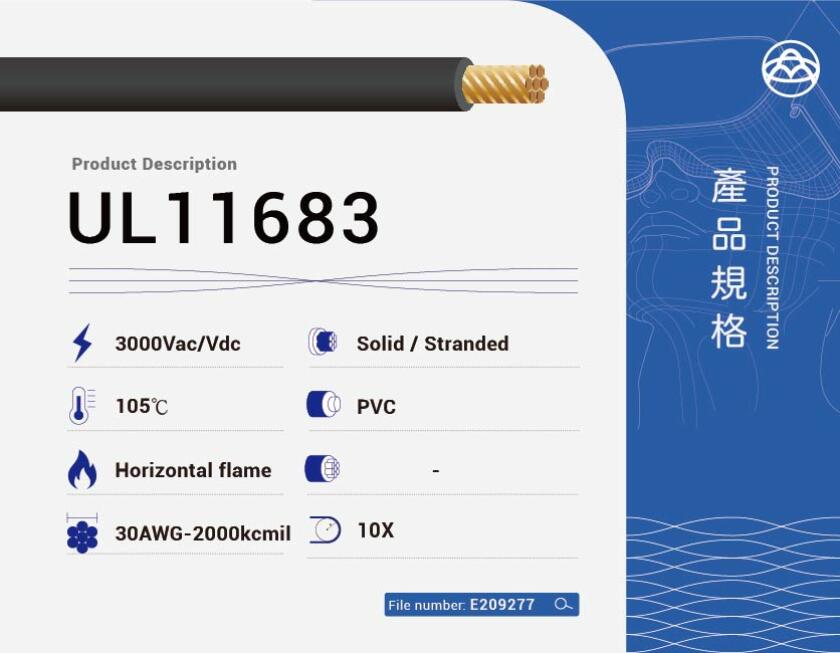

UL11683 Hook-Up Wire – 3000V 105°C PVC-Insulated Wire for High-Voltage Internal Applications
UL11683 is a UL-recognized single-conductor hook-up wire designed for internal wiring in electronic and electrical equipment. Rated for 3000V AC/DC and operating temperatures up to 105°C, it features durable Polyvinyl Chloride (PVC) insulation, ensuring reliable performance across various applications.
This wire is ideal for scenarios demanding dependable high-voltage connections and durability, such as control panels, appliances, and industrial machinery. Its design offers flexibility in routing while adhering to stringent safety standards.
Key Features
Voltage Rating: 3000V AC/DC
Temperature Rating: 105°C
Conductor Sizes: 30 AWG to 2000 kcmil, solid or stranded
Conductor Material: Bare or tinned copper
Insulation: Extruded PVC
Minimum Average Thickness: Varies by AWG size
Minimum Thickness at Any Point: Varies by AWG size
Flame Resistance: Passes UL Horizontal Flame Test
Oil Resistance: 60°C
Standards Compliance: UL 758 AWM Style 11683
Environmental Compliance: RoHS & REACH Compliant
Applications
Internal wiring of electronic and electrical equipment
Control panels and industrial machinery
Appliances requiring reliable internal connections
Point-to-point wiring in meters and instrumentation
UL11683 wire is engineered to deliver consistent performance in various environments, offering flexibility, durability, and compliance with safety standards.
