UL3302 single-conductor wire with XLPE insulation, UL-certified and rated 105°C/30V. Provides heat resistance, voltage stability, and flame performance for internal wiring.


UL3302 XLPE Insulated Wire – 105°C / 30V Hook-Up Wire for Internal Wiring Applications

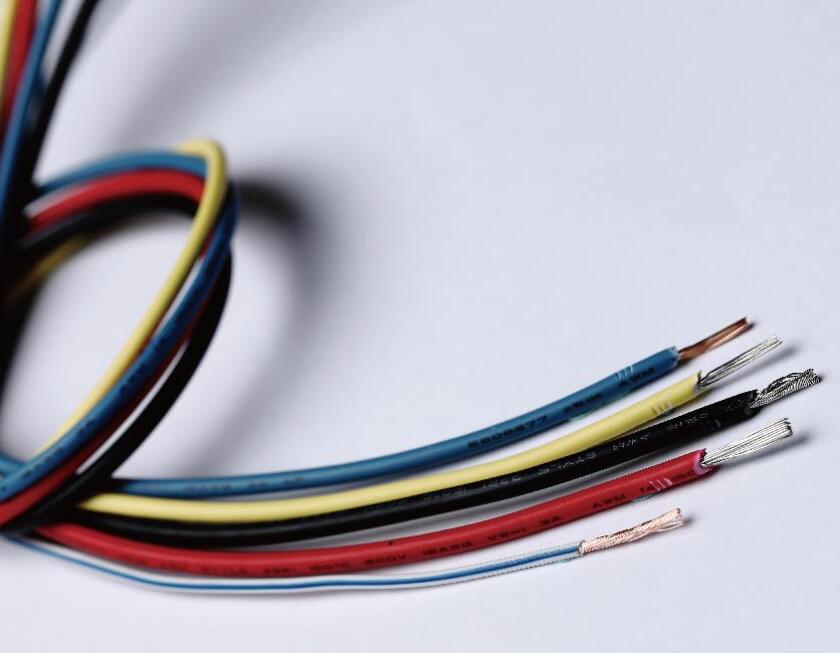

UL3302 is a UL-certified single-conductor wire insulated with cross-linked polyethylene (XLPE). Rated for 105°C and 30V, this wire is designed for internal wiring in electronic and electrical equipment where heat resistance, voltage stability, and flame perform

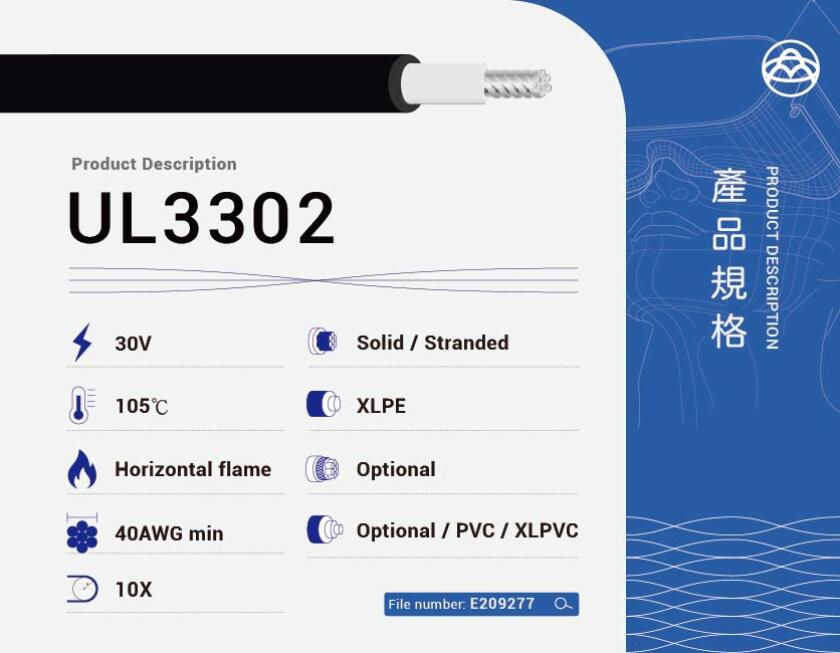

 Key Features

  • Conductor: Solid or stranded bare or tinned copper, available in sizes from 40 AWG and larger

  • Insulation: Extruded XLPE or foamed XLPE with a minimum thickness of 4 mils (0.10 mm) and a maximum thickness of 100 mils (2.54 mm)

  • Temperature Rating: Up to 105°C

  • Voltage Rating: 30V

  • Flame Resistance: Passes UL Horizontal Flame Test

  • Standards: Complies with UL 758 Appliance Wiring Material (AWM) Style 3302

  • Usage: Designed for internal wiring of Class 2 circuits in electronic equipment


 Common Applications

  • Internal wiring in electronic devices and instrumentation

  • Applications requiring moderate heat resistance and low-voltage performance

  • Internal connections in compact or precision electronic systems
