UL10064 High-speed cable

UL10064 FEP wire, UL-certified and rated 105°C/30V, ideal for compact electronics, sensors, and medical devices. Offers flexibility, chemical resistance, and reliable high-density wiring.

UL10064 FEP Wire – High-Temperature 105°C 30V Teflon Cable for Compact Electronics

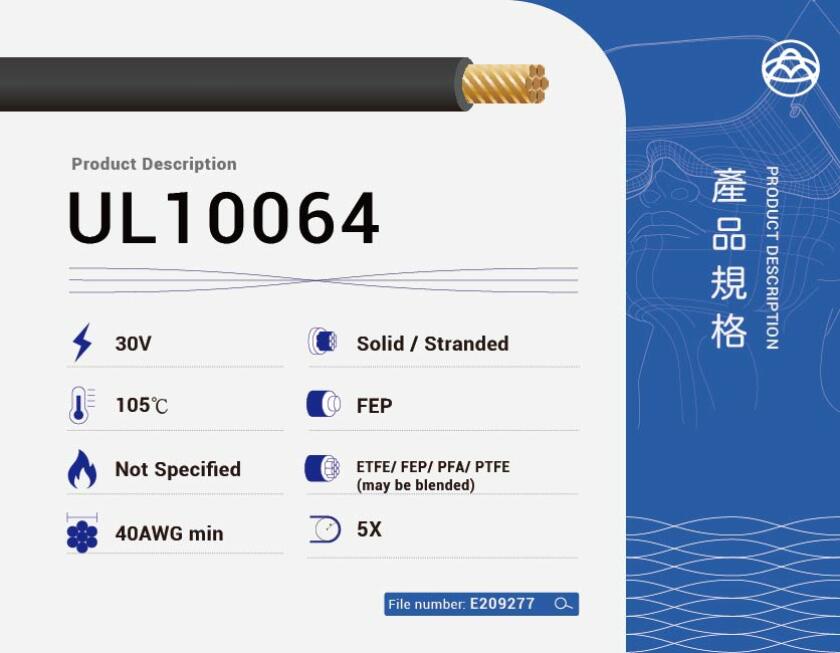

UL10064 FEP wire is a UL-certified ultra-fine wire insulated with fluorinated ethylene propylene (FEP), rated for 105°C and 30V. Designed for compact electronics, sensors, and high-density internal wiring, it is especially suitable where weight, size, and performance are critical.

With excellent thermal endurance, dielectric strength, and flexibility, UL10064 is trusted for precision wiring in microelectronics and medical devices. Its FEP insulation provides superior resistance to chemicals, moisture, and mechanical stress, ensuring stable operation in harsh environments.

Features

Available from AWG 40 to AWG 20 – supports fine-pitch electronic layouts
High-temperature resistance up to 105°C
FEP insulation with excellent dielectric and chemical properties
Flame-retardant: UL VW-1, CSA FT1 compliant
Meets RoHS and REACH environmental standards

Applications

UL10064 wire for compact electronics including laptops, phones, and wearable devices
105°C Teflon insulated wire for sensors and medical electronics
RoHS-compliant ultra-fine FEP wire for industrial control systems
LED modules and miniature lighting
Military and aerospace electronic components

With its UL certification and adherence to stringent environmental standards, UL10064 FEP wire is also suitable for export to global markets, including North America, Europe, and Asia. Its low outgassing properties make it a strong choice for cleanroom and vacuum environments, while the consistent performance across a wide temperature range ensures long-term system integrity.
