UL1185 Hook-Up Wire

UL1185 hook-up wire with PVC insulation and optional spiral shield, UL-recognized and rated 80°C/300V. Provides durable, flexible wiring for appliances, control panels, and machinery.


UL1185 Hook-Up Wire – 300V 80°C PVC-Insulated Shielded Wire for Internal Electronic Applications

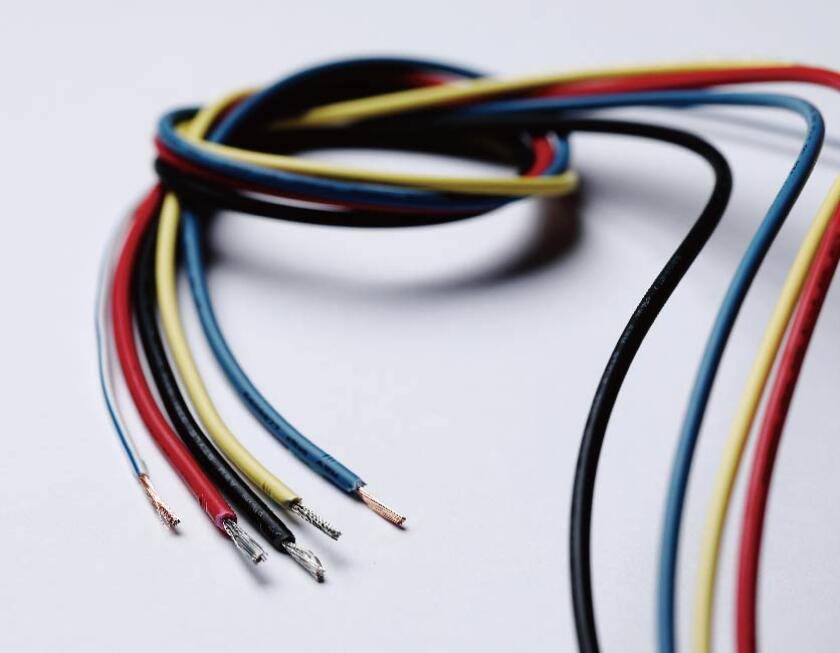

UL1185 is a UL-recognized single-conductor hook-up wire designed for internal wiring in electronic and electrical equipment. Rated for 300V and operating temperatures up to 80°C, it features durable Polyvinyl Chloride (PVC) insulation and an optional spiral shield, ensuring reliable performance across various applications.

This wire is ideal for scenarios demanding dependable low-voltage connections and durability, such as control panels, appliances, and industrial machinery. Its design offers flexibility in routing while adhering to stringent safety standards.

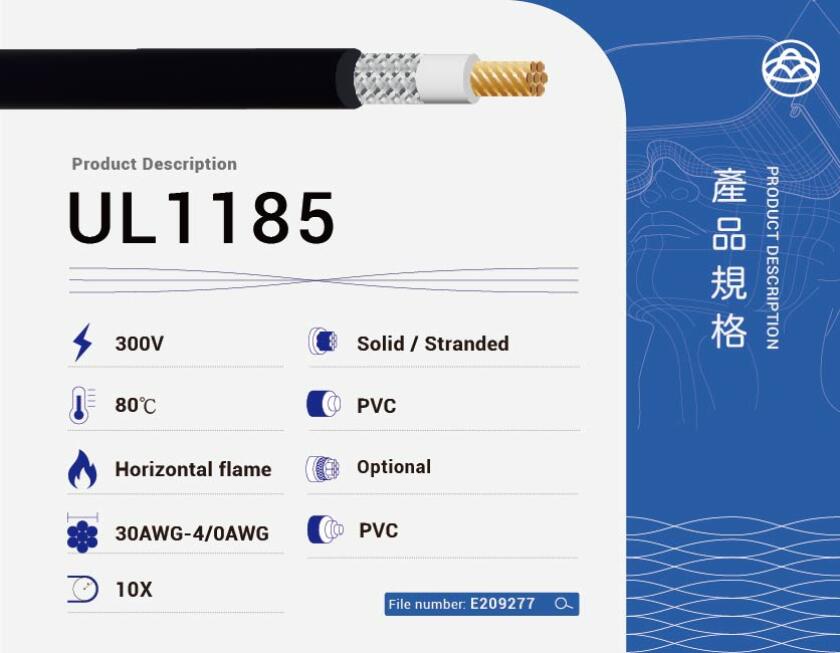

Key Features

  • Voltage Rating: 300V

  • Temperature Rating: 80°C

  • Conductor Sizes: 30 AWG to 4/0 AWG, solid or stranded

  • Conductor Material: Tinned or bare copper

  • Insulation: Extruded PVC

    • Minimum Average Thickness:

      • 30–16 AWG: 15 mils

      • 15–10 AWG: 30 mils

      • 9–8 AWG: 45 mils

      • 7–2 AWG: 60 mils

      • 1–4/0 AWG: 80 mils

  • Jacket: Extruded PVC (optional), with thickness varying by conductor size

  • Shielding: Optional spiral shield with tinned or bare copper strands

  • Flame Resistance: Passes UL Horizontal Flame Test

  • Standards Compliance: UL 758 AWM Style 1185

  • Environmental Compliance: RoHS & REACH Compliant


Applications

  • Internal wiring of electronic and electrical equipment

  • Control panels and industrial machinery

  • Appliances requiring reliable internal connections

  • Point-to-point wiring in meters and instrumentation

UL1185 wire is engineered to deliver consistent performance in various environments, offering flexibility, durability, and compliance with safety standards.
