UL3287
UL3287 single-conductor wire with XLPE insulation, UL-certified and rated 105°C/600V. Provides moderate heat resistance, voltage stability, and flame performance for internal wiring.
UL3287 XLPE Insulated Wire – 105°C / 600V Halogen-Free Hook-Up Wire for Internal Wiring Applications

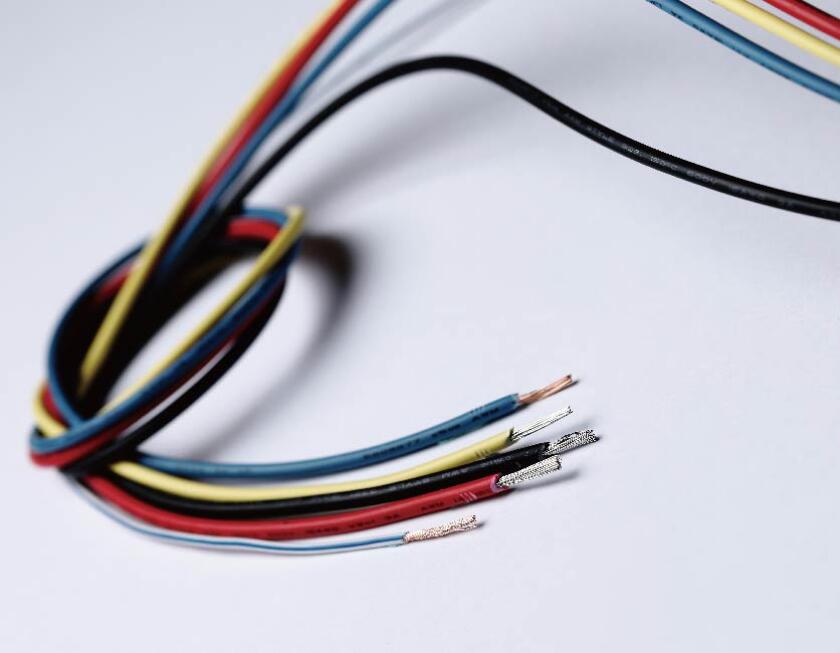

UL3287 is a UL-certified single-conductor wire insulated with cross-linked polyethylene (XLPE). Rated for 105°C and 600V, this wire is designed for internal wiring in electronic and electrical equipment where moderate heat resistance, voltage stability, and flame performance are critical.
Key Features
Conductor: Solid or stranded bare or tinned copper, available in sizes from 32 AWG to 9 AWG
Insulation: Extruded XLPE with a nominal thickness of 0.76 mm (30 mils)
Temperature Rating: Up to 105°C
Voltage Rating: 600V AC / 750V DC
Flame Resistance: Passes UL Horizontal Flame Test (UL 1581 VW-1)
Environmental Compliance: RoHS and REACH compliant, halogen-free
Standards: Complies with UL 758 Appliance Wiring Material (AWM) Style 3287
Usage: Designed for internal wiring in electronic and electrical equipment
Common Applications
Internal wiring in electronic devices, medical equipment, and instrumentation
Applications requiring moderate heat resistance and high-voltage performance
Internal connections in industrial control panels, motors, and transformers
Suitable for lighting systems, heating equipment, and household appliances
External Technical Reference
Need assistance selecting the right wire?
Our technical team is ready to help you choose the best UL3287 cable for your project.
