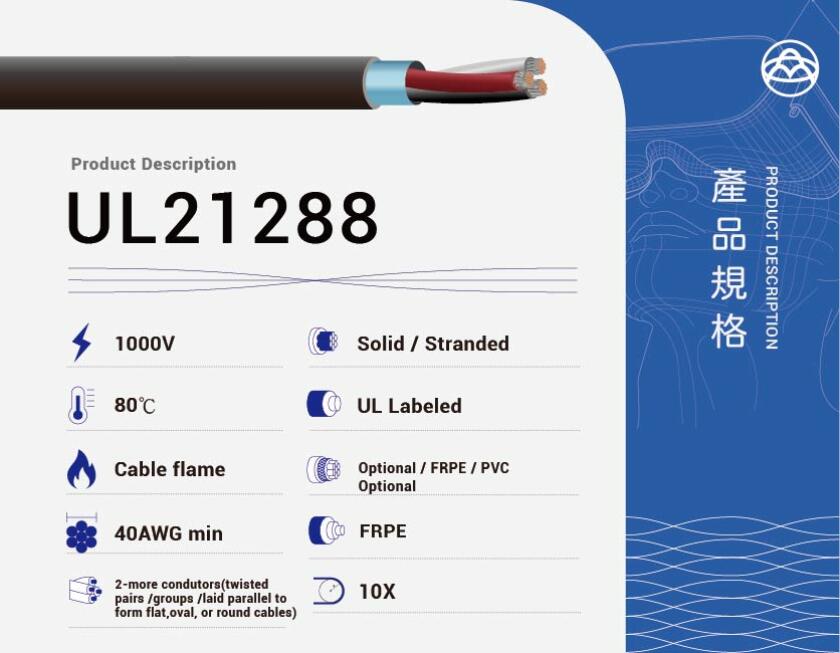

UL21288 multi-conductor cable, 1000V and 80°C rated, with FRPE insulation and jacket, ensures flexible, flame-resistant high-voltage internal wiring.


UL21288 FRPE Insulated Cable – 80°C / 1000V Multi-Conductor Wire for Internal Electronic Applications

UL21288 is a UL-certified multi-conductor cable designed for the internal wiring of electronic equipment. Rated for 80°C and 1000 V, this cable features solid or stranded copper conductors, flame-retardant FRPE insulation, and an extruded FRPE jacket. It complies with the Cable Flame Test under UL 758 AWM standards, offering a reliable solution for high-voltage internal wiring where flame resistance and flexibility are required.


Key Features

  • Conductor: Solid or stranded copper

  • Insulation: Flame-retardant FRPE

  • Jacket: Extruded FRPE

  • Temperature Rating: 80°C

  • Voltage Rating: 1000 V

  • Flame Resistance: Passes Cable Flame Test

  • Standard: UL 758 AWM Style 21288

  • Application: Internal high-voltage wiring in electronic equipment


Applications

  • Internal wiring in high-voltage electronic equipment

  • Control and signal transmission in industrial devices

  • Power-limited internal circuits requiring flame protection

  • Systems requiring halogen-free, durable insulation

 External Technical Reference

UL iQ™ Style Page – UL21288
