UL20744 High-speed cable
UL20744 flat ribbon cable, 150V rated, offers flexible, flame-resistant wiring for electronic equipment and complies with UL 758 AWM.
UL20744 Flat Ribbon Cable – 60/80°C, 30/150V Bonded or Laminated for Internal Electronic Wiring
UL20744 is a UL-certified flat ribbon cable designed for the internal wiring of electronic equipment. Rated for 60°C or 80°C and150V, this cable features 2 to 200 insulated singles (twisted pairs, triads, or quads) laid parallel in one plane, intermittently or continuously bonded together or to the PVC covering to form a flat ribbon type cable. It complies with the Horizontal Flame Test under UL 758 AWM standards, making it suitable for applications requiring flexibility and flame resistance.

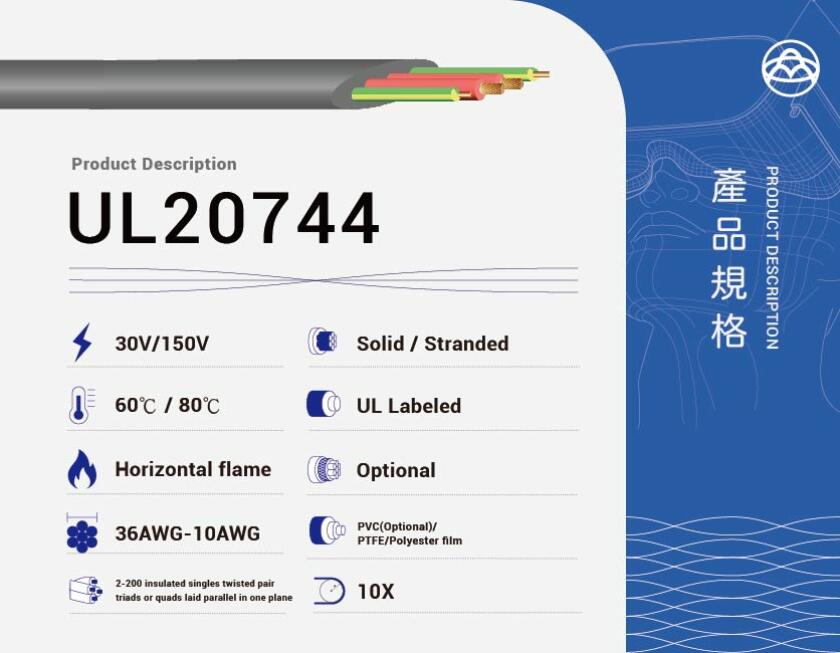

Key Features
Conductor: Solid or stranded copper, 36–10 AWG
Insulation: PVC or as per manufacturer's AWM procedure
Assembly: 2–200 insulated singles (twisted pairs, triads, or quads) laid parallel in one plane, bonded or laminated
Inner Covering: Optional, extruded PVC or laminated PVC/polyester film
Shield: Optional
Outer Covering: Optional, PVC (5–80 mils), PTFE (2–80 mils), or polyester film
Temperature Rating: 60°C or 80°C
Voltage Rating: 30V or 150V
Flame Resistance: Passes Horizontal Flame Test
Standard: UL 758 AWM Style 20744
Application: Internal wiring of electronic equipment
Applications
Internal wiring in electronic devices
Data transmission in computers and peripherals
Signal wiring in industrial equipment
Applications requiring flat ribbon cable configurations
