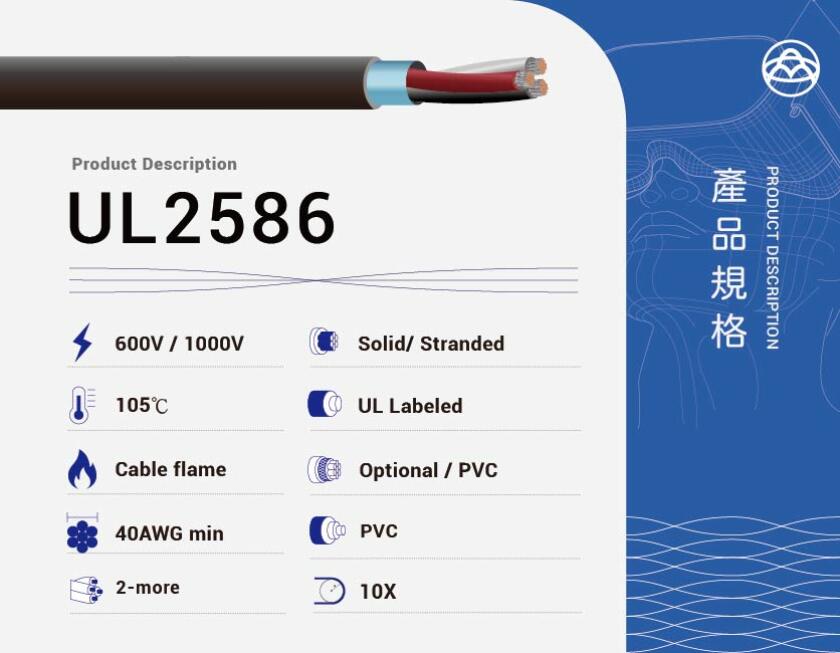

UL2586 PVC Insulated Cable
UL2586 multi-conductor cable, 1000V and 105°C rated, with PVC insulation and optional jacket, ensures durable, flame-resistant wiring for electronics.
UL2586 PVC Insulated Cable – 105°C / 1000V Multi-Conductor Wire for Internal Electronic Applications
UL2586 is a UL-certified multi-conductor cable designed for the internal wiring of electronic and electrical equipment. Rated for 105°C and 1000V, this cable features solid or stranded copper conductors, extruded PVC insulation, and an optional outer jacket. It meets the Cable Flame Test under UL 758 AWM standards, providing high-voltage durability and flame resistance in demanding industrial and electronic systems.
Key Features
Conductor: Solid or stranded copper
Insulation: Extruded PVC
Jacket: Optional
Temperature Rating: 105°C
Voltage Rating: 1000V
Flame Resistance: Passes Cable Flame Test
Standard: UL 758 AWM Style 2586
Use Case: Internal wiring of electronic and electrical equipment
Applications
High-voltage internal wiring in industrial electronics
Control panels and automation equipment
Power and signal wiring in instruments or devices
Applications requiring 1000V rated flame-retardant cabling
External Technical Reference
