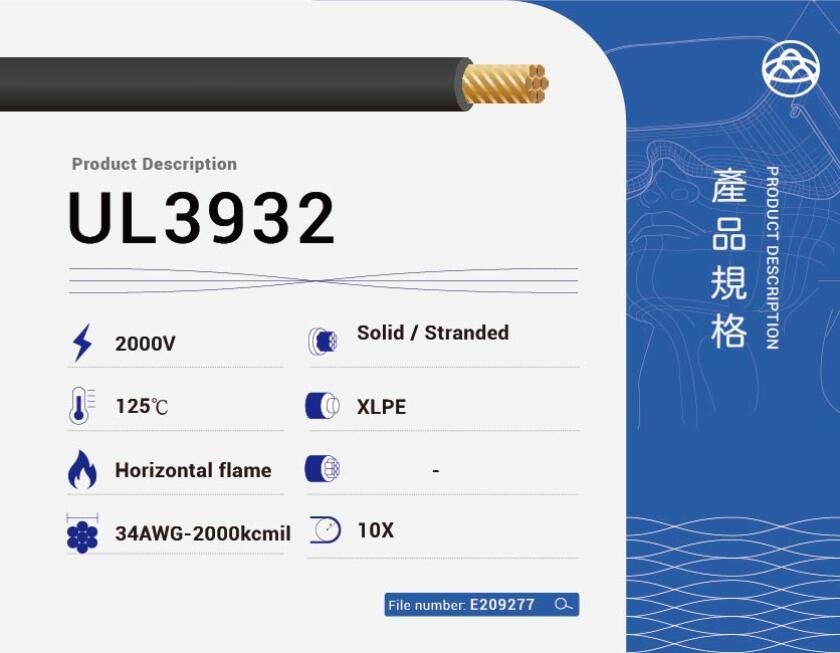

UL3932 XLPE Insulated Wire
UL3932 single-conductor wire with XLPE insulation, UL-certified and rated 125°C/2000V. Ideal for ESS, EVs, photovoltaics, and industrial control in high-voltage use.
UL3932 XLPE Insulated Wire – 125°C / 2000V High-Performance Cable for Energy Storage and Industrial Applications
UL3932 is a UL-certified single-conductor wire insulated with cross-linked polyethylene (XLPE), rated for 125°C and 2000V. It is designed for high-voltage and high-temperature environments, making it ideal for applications such as energy storage systems (ESS), industrial control, electric vehicles, and photovoltaic installations.
Key Features
Conductor: Bare or tinned copper, solid or stranded, available from 24 AWG to 4/0 AWG
Insulation: XLPE for excellent electrical and mechanical properties
Temperature Rating: -40°C to +125°C
Voltage Rating: 2000V AC
Flame Resistance: Passes UL VW-1 and CSA FT1 vertical flame tests
Standards: UL758, UL1581, CSA C22.2 No.210
Common Applications
Battery modules and inverter connections in energy storage systems (ESS)
Internal wiring of industrial control systems and automation equipment
High-voltage connections in electric vehicles (EVs) and charging infrastructure
Power transmission in solar photovoltaic (PV) systems
Environments requiring enhanced heat resistance and flame retardancy
External Technical Reference
Need assistance selecting the right wire?
Our technical team is ready to help you choose the best UL3932 cable for your project.
