UL1792
UL1792 shielded wire, UL-certified for 80°C/30V. Provides flame retardancy and reliable signal transmission for internal wiring in electronic and electrical equipment.

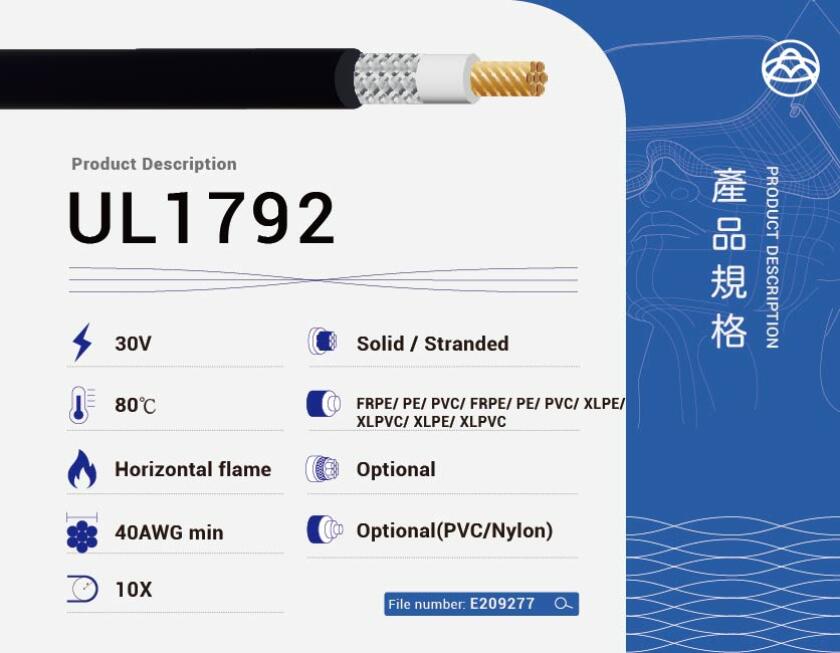

UL1792 Shielded Wire – 80°C / 30V Flame-Retardant Cable for Internal Wiring Applications
UL1792 is a UL-certified single-conductor shielded wire designed for internal wiring in electronic and electrical equipment. Rated for 80°C and 30V, this wire is ideal for applications requiring flame retardancy and reliable signal transmission.
Key Features
Conductor: Solid or stranded tinned copper, available in sizes from 40 AWG and larger
Insulation: Extruded solid or foamed FRPE (Flame-Retardant Polyethylene), PE, PVC, XLPE, or XLPVC
Shielding: Optional bare or tinned copper wire braid or wrap
Sheath: PVC (Polyvinyl Chloride)
Temperature Rating: Up to 80°C
Voltage Rating: 30V
Flame Resistance: Passes UL Horizontal Flame Test
Standards: Complies with UL 758 Appliance Wiring Material (AWM) Style 1792
Usage: Designed for internal wiring in electronic and electrical equipment
Conductor Resistance Reference (20°C, Ω/km)
| AWG | Resistance (Ω/km) |
| 40 | 1079 |
| 38 | 680 |
| 36 | 427 |
| 34 | 269 |
| 32 | 170 |
| 30 | 107 |
| 28 | 67.4 |
| 26 | 42.4 |
| 24 | 26.7 |
| 22 | 16.8 |
| 20 | 10.6 |
| 18 | 6.65 |
Common Applications
Internal wiring in computers, video equipment, and audio systems
Applications requiring flame-retardant and shielded wiring
Internal connections in industrial control panels and instrumentation
Suitable for low-voltage signal transmission and data communication
