UL3464 single-conductor wire with XLPE insulation, UL-certified and rated 125°C/30V. Provides heat resistance, voltage stability, and flame performance for internal wiring.

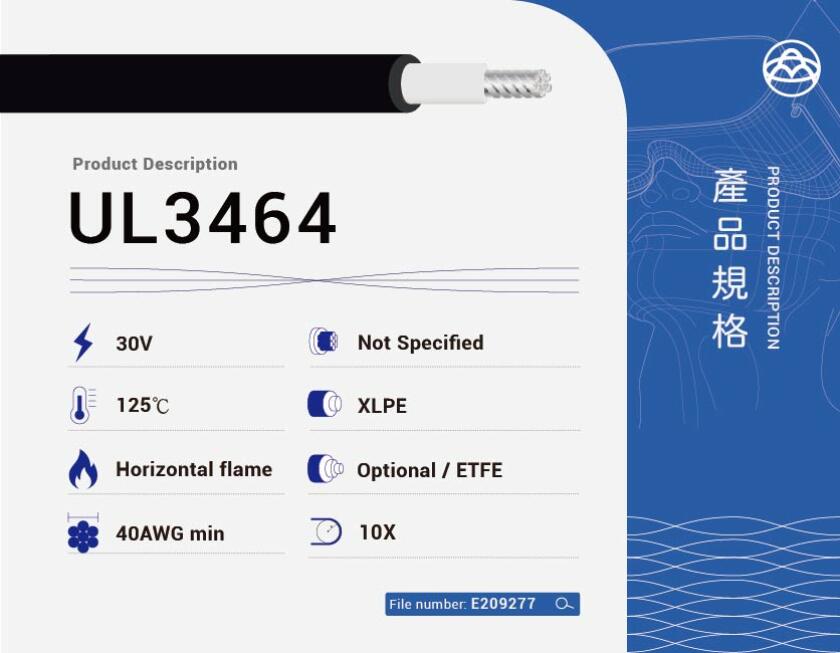

UL3464 XLPE Insulated Wire – 125°C / 30V Hook-Up Wire for Electronic Equipment

UL3464 is a UL-certified single-conductor wire insulated with cross-linked polyethylene (XLPE). Rated for 125°C and 30V, this wire is engineered for internal wiring in electronic devices where heat resistance, voltage stability, and flame performance are critical.


Features

  • Conductor: Solid or stranded, bare or tinned copper; available down to 40 AWG

  • Insulation: Extruded XLPE, with minimum insulation thickness of 4 mils (0.10 mm) and maximum up to 100 mils (2.54 mm)

  • Temperature Rating: Up to 125°C

  • Voltage Rating: 30V

  • Flame Resistance: Meets horizontal flame test requirements

  • Standards: UL 758 Appliance Wiring Material (AWM Style 3464)

  • Usage: Designed for internal wiring in electronic equipment


 Common Applications

  • Internal wiring in electronic devices and instrumentation

  • Applications requiring high heat resistance and low-voltage performance

  • Internal connections in compact or precision electronic systems
