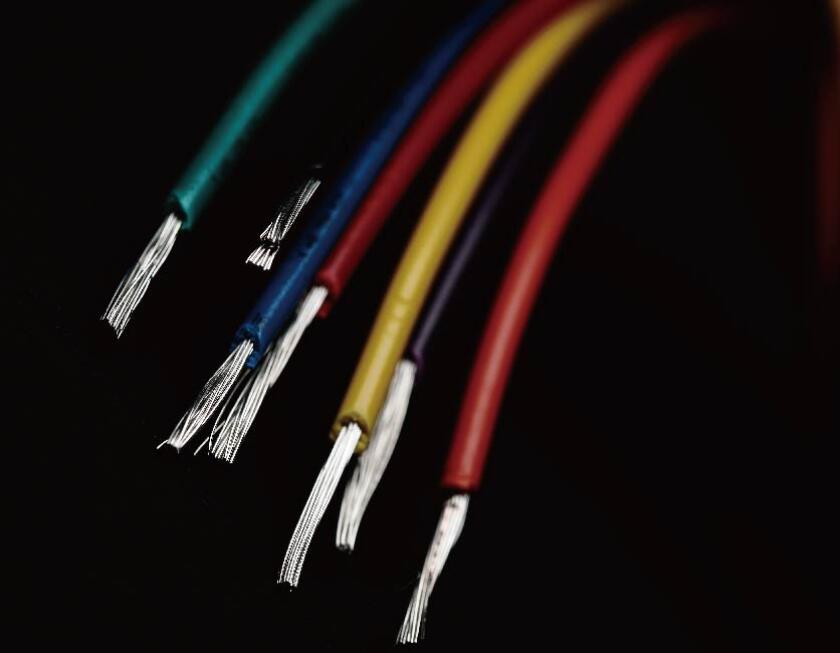

UL3856
UL3856 wire with XLPE insulation is rated 125°C/3000V, offering superior heat resistance, dielectric strength, and flame performance for industrial wiring and high-voltage applications.
UL3856 XLPE Insulated Wire – 125°C / 3000V High-Performance Wire for Internal Industrial Wiring
UL3856 is a UL-certified single-conductor wire featuring extruded cross-linked polyethylene (XLPE) insulation. Rated for 125°C and 3000V, this wire is ideal for internal wiring in industrial equipment, control panels, and high-voltage assemblies that require excellent heat resistance, dielectric strength, and flame performance.
Key Features
Conductor: Solid or stranded, bare or tinned copper, available from 32 AWG to 10 AWG
Insulation: Extruded XLPE with a minimum average thickness of 11 mils (0.28 mm) and a minimum point thickness of 10 mils (0.25 mm)
Temperature Rating: Up to 125°C
Voltage Rating: 3000V
Flame Resistance: Complies with horizontal flame test requirements
Standards: UL 758 Appliance Wiring Material (AWM)
Usage: Intended for internal wiring in electrical and electronic equipment
Common Applications
Internal wiring in industrial machinery and equipment
High-voltage connections in control panels and distribution boxes
Electrical components operating in high-temperature or high-voltage environments
Reliable wiring in confined spaces requiring XLPE electrical cable durability
