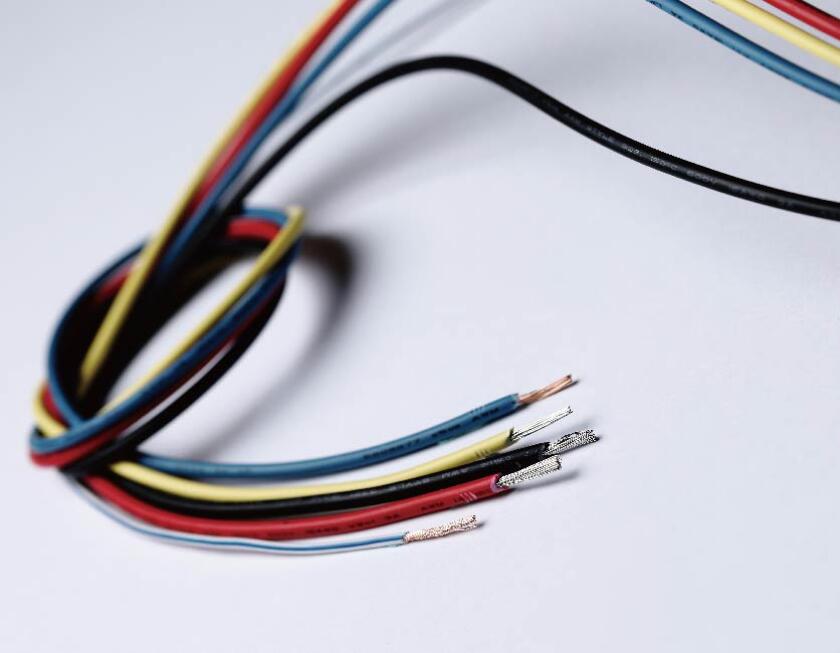

UL3239 High-Voltage Silicone Wire
UL3239 is an elite high-voltage single-conductor lead wire precisely engineered for demanding electrical applications requiring absolute dielectric safety and flexibility. Featuring a premium tinned copper stranded conductor wrapped in an extra-thick, high-purity silicone rubber insulation matrix, this cable is purpose-built to withstand severe electrical potentials ranging from 10kV up to 50kV DC depending on custom wall configurations. It provides unparalleled thermal resilience, mechanical flexibility, and aging protection within critical electronic assemblies.
Engineered for High-Potential (Hi-Pot) Enclosures & Extreme Electrical Stress:
- Exceptional Dielectric Insulation: The specialized high-thickness silicone compound prevents corona discharge and insulation breakdown under elevated voltage profiles.
- Premium Anti-Oxidization Conductor: Stranded tinned copper core delivers superb current continuity, prevents corrosion in high-ozone environments, and ensures smooth terminal soldering.
- Thermal and Flexural Durability: Maintains outstanding structural pliability and elastomeric properties across a wide temperature spectrum, ensuring seamless routing inside tight high-voltage power supplies.

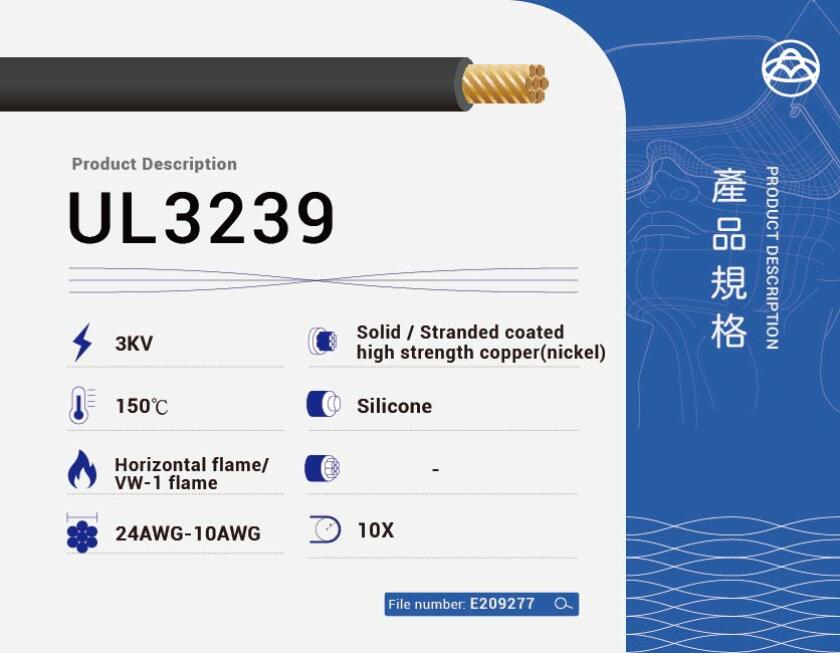

Technical Specifications
UL3239 High-Voltage Silicone Rubber Insulated Wire
Why Choose UL3239? (Key Benefits)
Specially formulated thick silicone layer provides critical structural containment against high-voltage breakdown, arc tracking, and signal leakage.
Exceptional bend radius pliability making it perfect for tight structural layout routing in complex chassis enclosures and dynamic stress environments.
Utilizes advanced solid or stranded copper/nickel options to secure maximum current propagation while eliminating mechanical fatigue failure.
Guarantees unwavering physical and electrical protection from a freezing -60°C up to high-heat thresholds of +150°C / +200°C without insulation aging.
Applications
Power & Transformers
- High-voltage power supplies
- Industrial transformers
- Plasma generator wiring
Medical Equipment
- X-ray machine leads
- CT scanner internal routing
- Diagnostic imaging rigs
EV Charging & Electronics
- EV charging system wiring
- High-voltage power electronics
- Automotive high-potential grids
Lasers & Instruments
- Industrial laser systems
- Test & measurement tools
- Laboratory high-voltage rigs
