UL3580 Silicone Hook-Up Wire

UL3580 silicone hook-up wire offers 200°C heat resistance, flexibility, and flame protection—ideal for internal wiring in electronic and electrical equipment.

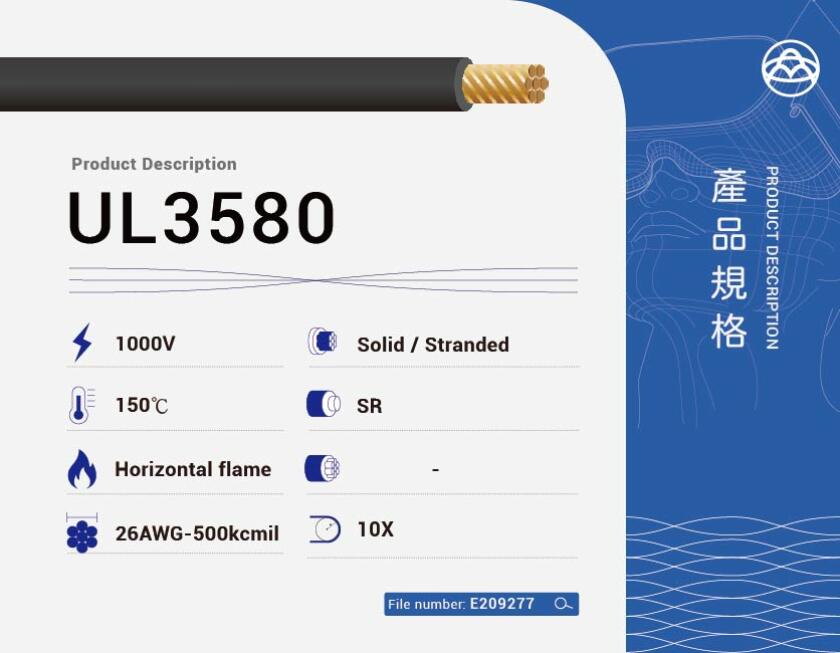

UL3580 Hook-Up Wire

High-Temperature Silicone Insulated Hook-Up Wire

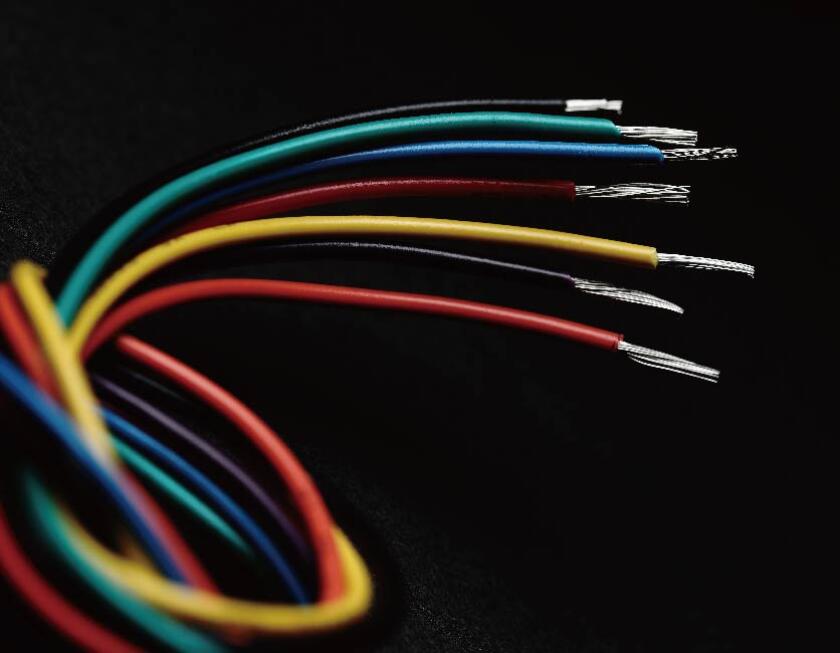

UL3580 is a single-conductor hook-up wire featuring a stranded tinned copper conductor paired with a heat-resistant silicone insulation layer. It is specifically designed for internal wiring in electronic and electrical equipment, offering exceptional mechanical durability, flame resistance, and thermal stability.

This product is ideal for industrial and commercial electrical environments that demand reliable heat resistance and long-lasting stable performance, ensuring safety and durability for internal equipment wiring.

Voltage Rating 1000V AC
Temperature Rating 150°C
Insulation Material Silicone Rubber

Key Features & Specifications

UL 3580 Silicone Insulated Hook-Up Wire Specification Table

Voltage Rating
1000V AC (High Voltage Rating)
Temperature Rating
150°C (Operating Temp)
Conductor Sizes
30 AWG to 2 kcmil, stranded
Conductor Material
Tinned Copper (Stranded)
Insulation Material
Extruded Silicone Rubber
Flame Rating
Passes UL VW-1 Vertical Flame Test
Standards Compliance
UL 758 AWM Style 3580
Environmental Compliance
RoHS & REACH Compliant
Heat-resistant high-performance wire designed for internal wiring of electronic equipment
