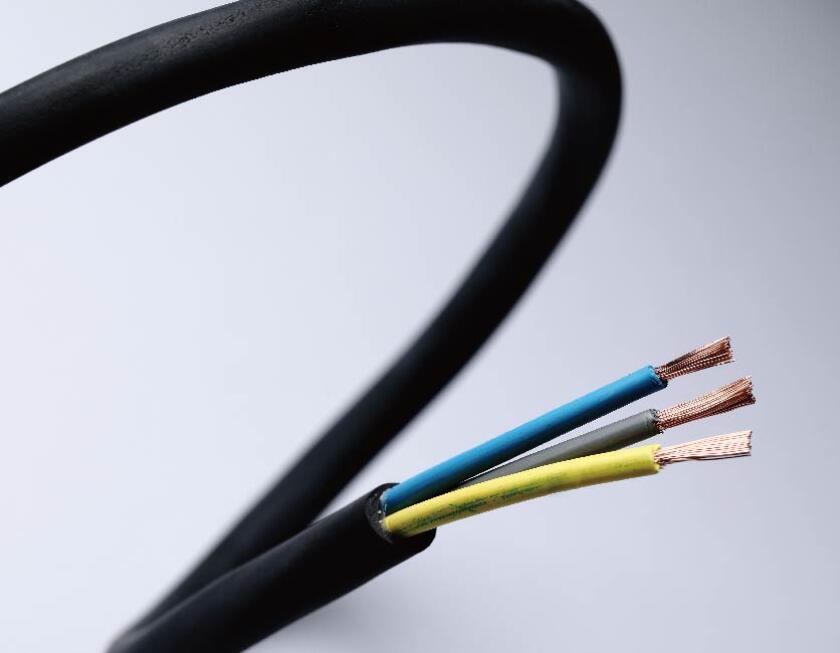

UL21350 multi-conductor cable, 30V and 60°C rated, with FRPE jacket and AWM insulation, provides flexible, flame-resistant low-voltage wiring.


UL21350 FRPE Insulated Cable – 60°C / 30V Multi-Conductor Wire for Internal Electronic Applications

UL21350 is a UL-certified multi-conductor cable designed for internal wiring of electronic equipment. Rated for 60°C and 30 V, this cable features solid or stranded copper conductors, insulation compliant with the manufacturer’s AWM procedure, and an extruded FRPE jacket. It meets the Cable Flame Test requirement under UL 758 AWM standards, making it suitable for compact and low-voltage electronic wiring applications.


 Key Features

  • Conductor: Solid or stranded copper (30 AWG and larger)

  • Insulation: FRPE or equivalent, per AWM procedure

  • Jacket: Extruded FRPE

  • Temperature Rating: 60°C

  • Voltage Rating: 30 V

  • Flame Resistance: Passes Cable Flame Test

  • Standard: UL 758 AWM Style 21350

  • Application: Internal low-voltage wiring of electronic devices


Applications

  • Signal or control wiring in compact devices

  • Internal low-voltage wiring of consumer electronics

  • Wiring in medical, test, or telecom equipment

  • Applications requiring FRPE jacket and basic flame compliance

 External Technical Reference

UL iQ™ Style Page – UL21350
