UL21145 cable, 1000V 80°C with FRPE insulation and jacket, ensures flame resistance, durability, and reliable wiring performance.

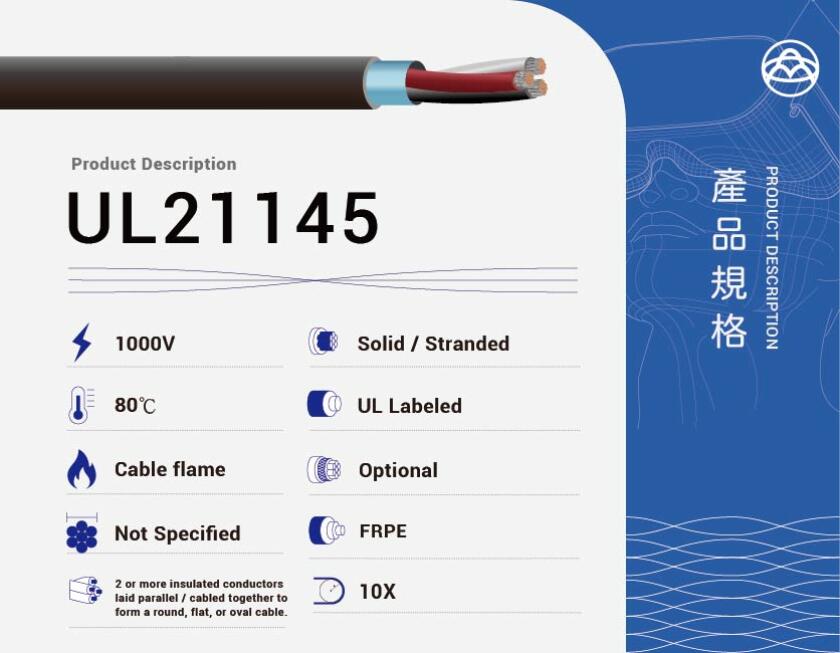

UL21145 FRPE Insulated Cable – 1000V / 80°C Multi-Conductor Wire for Internal and External Applications

UL21145 is a UL-certified multi-conductor cable designed for internal and external wiring in electronic and electrical equipment. Rated for 1000V and 80°C, it features solid or stranded copper conductors, FRPE insulation, and an extruded FRPE jacket. It complies with the Cable Flame Test under UL 758 AWM standards, offering excellent flame retardance, thermal resistance, and mechanical durability.


Key Features

  • Conductor: Solid or stranded round copper (30 AWG – 4/0 AWG)

  • Insulation: Flame-retardant FRPE

  • Assembly: Two or more insulated singles; optional fillers, shields, or braiding

  • Jacket: Extruded FRPE

  • Temperature Rating: 80°C

  • Voltage Rating: 1000V

  • Flame Test: UL Cable Flame Test compliant

  • Standard: UL 758 AWM Style 21145

  • Application: Internal and external appliance wiring


Applications

  • High-voltage internal wiring for electronic equipment

  • External cabling in industrial machinery and control systems

  • Power distribution in high-reliability systems

  • Flame-resistant cabling for safety-critical installations
