UL21310

UL21310 multi-conductor cable, 600V and 80°C rated, with FRPE jacket and AWM insulation, provides flexible, flame-resistant wiring for electronic equipment.

UL21310 FRPE Insulated Cable – 80°C / 600V Multi-Conductor Wire for Internal Electronic Applications

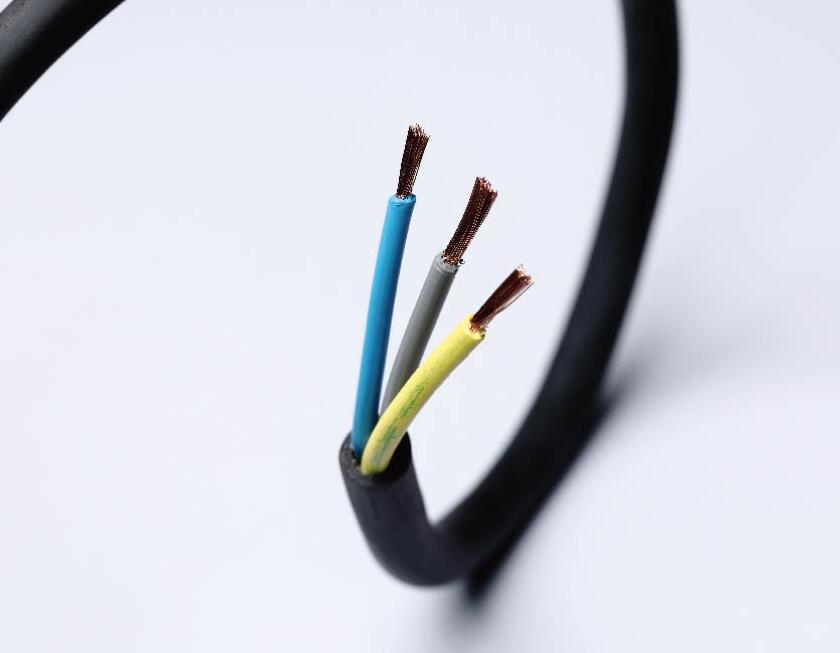

UL21310 is a UL-certified multi-conductor cable designed for internal wiring of electronic equipment. Rated for 80°C and 600V, this cable features solid or stranded copper conductors, insulation complying with the manufacturer's AWM procedure, and an extruded FRPE jacket. It complies with the Horizontal Flame Test under UL 758 AWM standards, making it suitable for applications requiring flexibility and flame resistance.

Key Features

Conductor: Solid or stranded copper, 40 AWG minimum
Insulation: Labeled or complies with manufacturer's AWM Procedure
Assembly: Two or more twisted singles or groups of twisted singles twisted together, or groups may be laid parallel to form flat, oval, or round cables
Shield: Optional
Jacket: Extruded FRPE, 16 mils minimum average thickness, 12 mils minimum at any point
Temperature Rating: 80°C
Voltage Rating: 600V
Flame Resistance: Passes Horizontal Flame Test
Standard: UL 758 AWM Style 21310
Application: Internal wiring of electronic equipment
