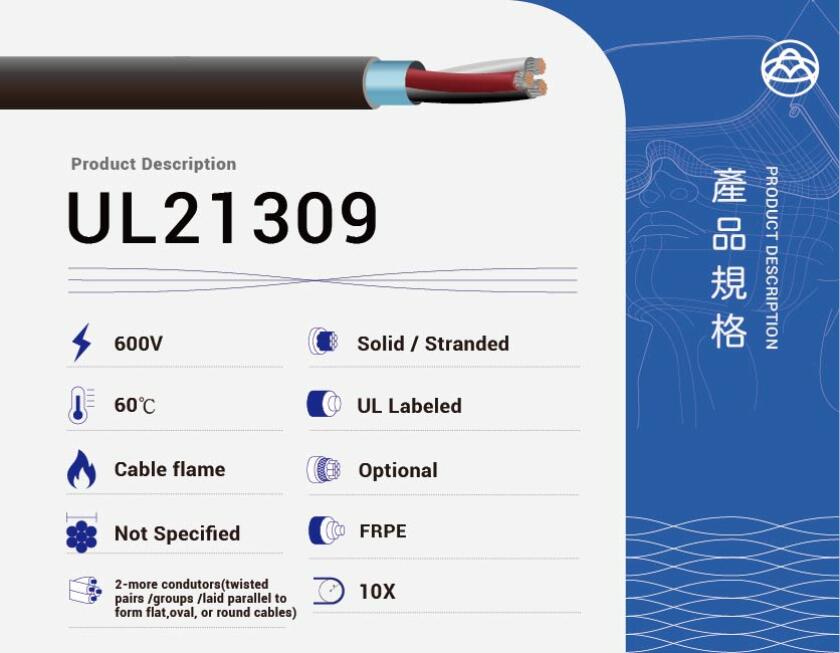

UL21309 multi-conductor cable, 600V and 60°C rated, with FRPE jacket and AWM insulation, ensures flexible, flame-resistant wiring for electronic equipment.


UL21309 FRPE Insulated Cable – 60°C / 600V Multi-Conductor Wire for Internal and External Electronic Applications

UL21309 is a UL-certified multi-conductor cable designed for internal wiring and external interconnection of electronic equipment. Rated for 60°C and 600V, this cable features solid or stranded copper conductors, insulation complying with the manufacturer's AWM procedure, and an extruded FRPE jacket. It complies with the VW-1 vertical flame test under UL 758 AWM standards, making it suitable for applications requiring flexibility and flame resistance.


Key Features

  • Conductor: Solid or stranded copper

  • Insulation: Labeled or complies with manufacturer's AWM Procedure

  • Assembly: Two or more insulated singles or groups of insulated singles cabled together to form a flat, oval, or round assembly

  • Shield: Optional

  • Jacket: Extruded FRPE

  • Temperature Rating: 60°C

  • Voltage Rating: 600V

  • Flame Resistance: Passes VW-1 vertical flame test

  • Standard: UL 758 AWM Style 21309

  • Application: Internal wiring and external interconnection of electronic equipment


Applications

  • Internal wiring in electronic devices

  • Signal transmission in computers and peripherals

  • Control wiring in industrial equipment

  • External interconnection of electronic equipment
