UL21339

UL21339 multi-conductor cable, 300V and 80°C rated, with FRPE jacket and AWM insulation, ensures flexible, flame-resistant wiring for electronic equipment.

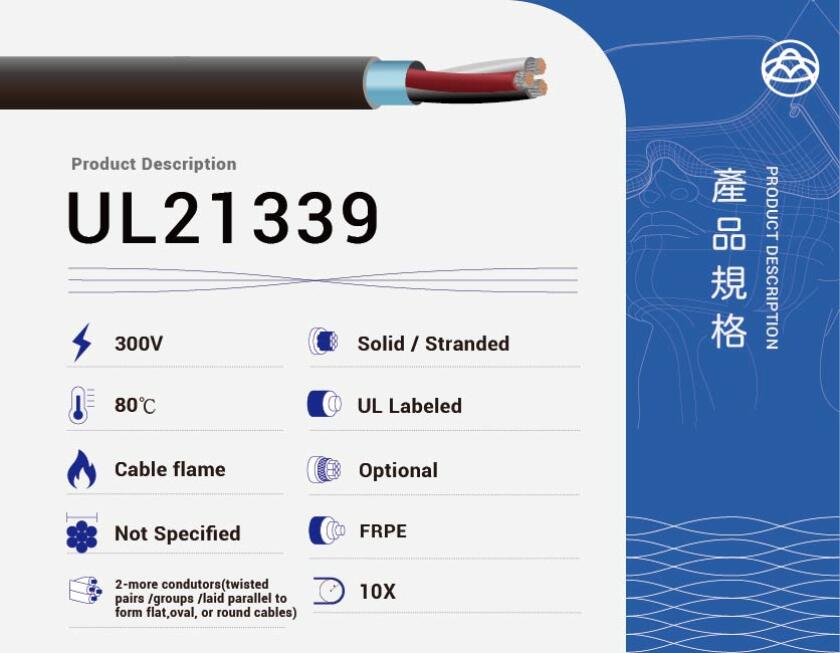

UL21339 FRPE Insulated Cable – 80°C / 300V Multi-Conductor Wire for Internal and External Electronic Applications

UL21339 is a UL-certified multi-conductor cable designed for internal wiring and external interconnection of electronic equipment. Rated for 80°C and 300V, this cable features solid or stranded copper conductors, insulation complying with the manufacturer's AWM procedure, and an extruded FRPE jacket. It complies with the Cable Flame Test under UL 758 AWM standards, making it suitable for applications requiring flexibility and flame resistance.

Key Features

Conductor: Solid or stranded copper
Insulation: Labeled or complies with manufacturer's AWM Procedure
Assembly: Two or more singles, twisted pairs or groups of twisted singles twisted together, or singles or groups of singles laid parallel to form flat, oval, or round cables
Shield: Optional
Covering: Optional
Braid: Optional
Jacket: Extruded FRPE
- For cables with a major diameter:
  - ≤ 0.700 inch: 30 mils minimum average thickness, 24 mils minimum at any point
  - 0.701–1.000 inch: 45 mils minimum average thickness, 36 mils minimum at any point
  - 1.001–1.500 inch: 60 mils minimum average thickness, 48 mils minimum at any point
  - 1.501–2.500 inch: 80 mils minimum average thickness, 64 mils minimum at any point
  - 2.501–4.000 inch: 110 mils minimum average thickness, 88 mils minimum at any point
  - ≥ 4.001 inch: 140 mils minimum average thickness, 112 mils minimum at any point
Temperature Rating: 80°C
Voltage Rating: 300V
Flame Resistance: Passes Cable Flame Test
Standard: UL 758 AWM Style 21339
Application: Internal wiring or external interconnection of electronic equipment
