UL21080 multi-conductor cable, 300V 75°C with FRPE insulation, offers LSZH safety, flexibility, and flame resistance for electronics.


UL21080 – 300V / 75°C Multi-Conductor Cable with FRPE Jacket for Electronic Applications

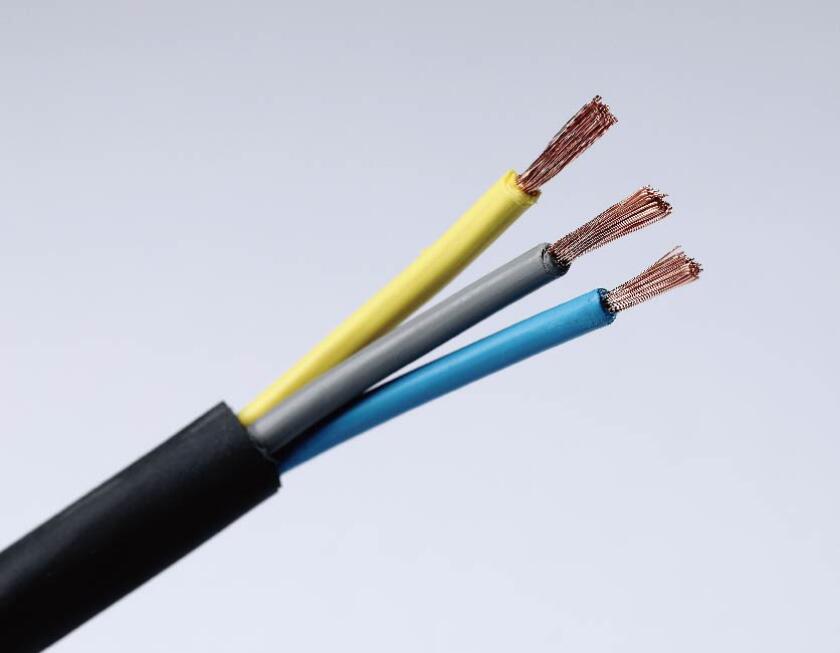

UL21080 is a UL-certified multi-conductor cable designed for internal wiring and external interconnection of electronic equipment. Rated for 300V and 75°C, this cable features solid or stranded tinned copper conductors, flame-retardant FRPE (Flame Retardant Polyethylene) insulation, and complies with the Cable Flame Test under UL 758 AWM standards. It is suitable for applications requiring flexibility, flame resistance, and low smoke zero halogen (LSZH) properties.


 Key Features

  • Conductor: Solid or stranded tinned copper (30 AWG to 4/0 AWG)

  • Insulation: AWM-compliant material

  • Shielding (Optional): Foil shield, braiding, or copper strands wrapped

  • Jacket: Extruded FRPE (Flame Retardant Polyethylene), LSZH

  • Temperature Rating: 75°C

  • Voltage Rating: 300V

  • Flame Resistance: Passes UL VW-1, FT1, and FT2 tests

  • Standards: UL 758, UL 1581, UL 2556

  • Compliance: RoHS, REACH, CE

  • Application: Internal wiring and external interconnection of electronic equipment


Applications

  • Internal wiring in electronic devices

  • External connections in industrial control systems

  • Circuits requiring flame resistance and insulation durability

  • High-reliability internal and external cabling for sensitive systems

External Technical Reference

UL iQ™ Style Page – UL21080
