UL21119 cable, 150V 80°C with FRPE insulation, offers flexibility, flame resistance, and reliable wiring for electronic equipment.

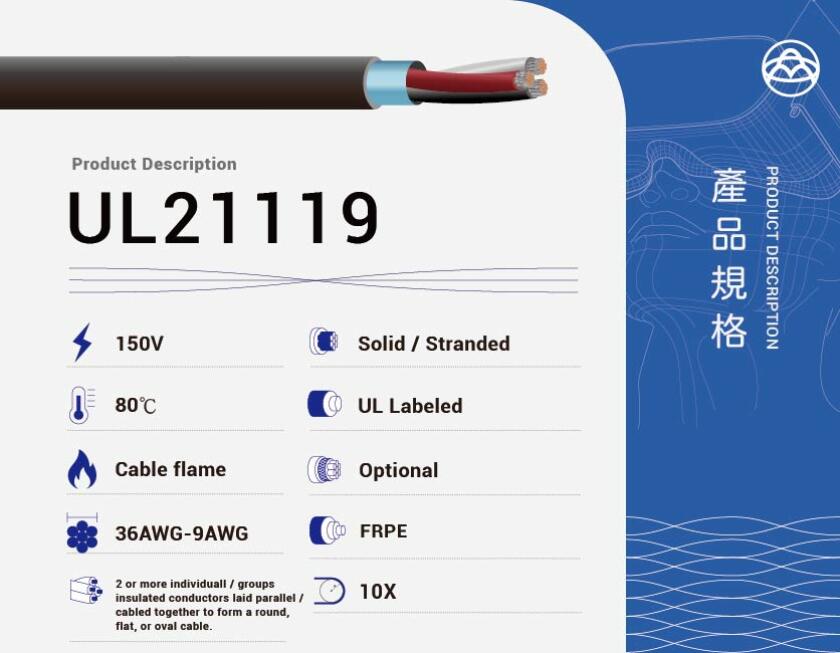

UL21119 – 150V / 80°C Multi-Conductor Cable with FRPE Jacket for Internal and External Electronic Applications

UL21119 is a UL-certified multi-conductor cable designed for both internal and external wiring of electronic equipment. Rated for 150V and 80°C, this cable features solid or stranded copper conductors, flame-retardant FRPE (Flame Retardant Polyethylene) insulation, and complies with the Cable Flame Test under UL 758 AWM standards. It is suitable for applications requiring flexibility and flame resistance.


Key Features

  • Conductor: Solid or stranded copper (36 AWG – 9 AWG)

  • Insulation: FRPE (Flame Retardant Polyethylene)

  • Assembly: Two or more insulated conductors; may include shields, fillers, or barrier layers

  • Jacket: FRPE (Flame Retardant Polyethylene)

  • Temperature Rating: 80°C

  • Voltage Rating: 150V

  • Flame Resistance: Passes UL VW-1 vertical flame test

  • Standard: UL 758 AWM Style 21119

  • Application: Internal and external wiring of electronic equipment


Applications

  • Internal wiring in electronic devices

  • External connections in industrial control systems

  • Circuits requiring flame resistance and insulation durability

  • High-reliability internal and external cabling for sensitive systems

External Technical Reference

UL iQ™ Style Page – UL21119
