UL21101 cable, 30V 80°C multi-conductor with FRPE insulation, offers flexibility, flame resistance, and reliable wiring performance.

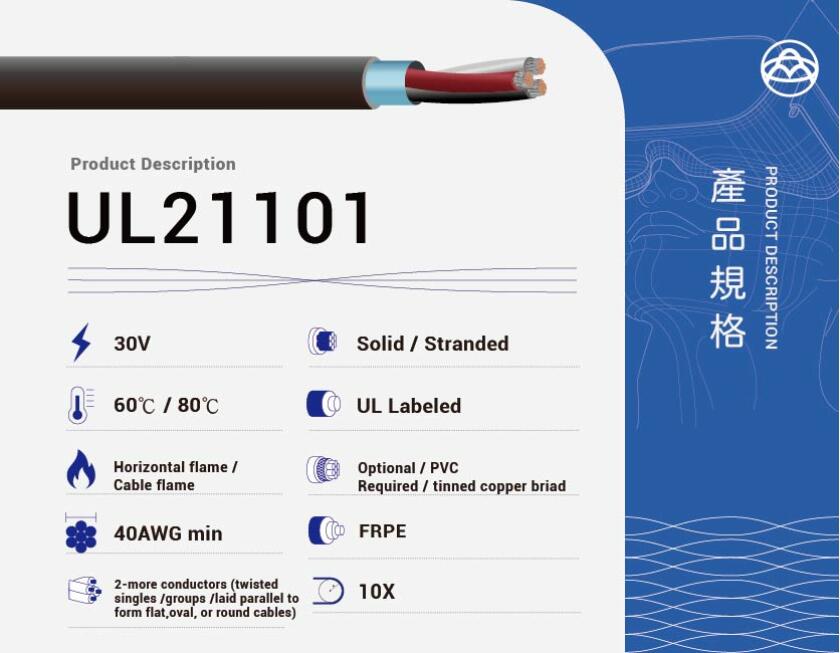

UL21101 – 30V / 80°C Multi-Conductor Cable with FRPE Jacket for Internal and External Electronic Applications

UL21101 is a UL-certified multi-conductor cable designed for both internal and external wiring of electronic equipment. Rated for 30V and 80°C, this cable features solid or stranded copper conductors, flame-retardant FRPE (Flame Retardant Polyethylene) insulation, and complies with the Cable Flame Test under UL 758 AWM standards. It is suitable for applications requiring flexibility and flame resistance.


 Key Features

  • Conductor: Solid or stranded copper (40 AWG and larger)

  • Insulation: FRPE (Flame Retardant Polyethylene)

  • Assembly: Two or more insulated conductors; may include shields, fillers, or barrier layers

  • Jacket: FRPE (Flame Retardant Polyethylene)

  • Temperature Rating: 80°C

  • Voltage Rating: 30V

  • Flame Resistance: Passes UL VW-1, FT1, and FT2 tests

  • Standard: UL 758 AWM Style 21101

  • Application: Internal and external wiring of electronic equipment


Applications

  • Internal wiring in electronic devices

  • External connections in industrial control systems

  • Circuits requiring flame resistance and insulation durability

  • High-reliability internal and external cabling for sensitive systems

 External Technical Reference

UL iQ™ Style Page – UL21101
