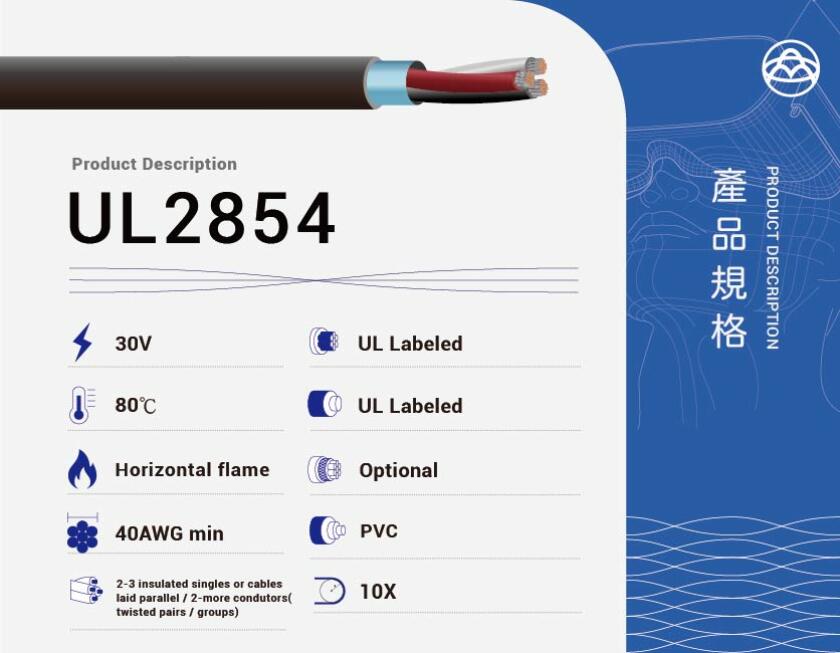

UL2854 multi-conductor cable, 30V and 80°C rated, with PVC insulation and optional jacket, provides flexible, flame-resistant wiring for electronics.


UL2854 PVC Insulated Cable – 80°C / 30V Parallel Wire for Internal Electronic Applications

UL2854 is a UL-certified multi-conductor cable designed for the internal wiring of electronic equipment. Rated for 80°C and 30 Vac , it consists of two or more solid or stranded copper conductors laid parallel, insulated with extruded PVC, and may include an optional overall jacket. UL2854 complies with the Cable Flame Test under UL 758 AWM standards, offering a flexible and flame-resistant solution for low-voltage internal wiring.


key Features

  • Conductor: Solid or stranded copper (two or more in parallel)

  • Insulation: Extruded PVC

  • Jacket: Optional

  • Temperature Rating: 80°C

  • Voltage Rating: 30 V

  • Flame Resistance: Passes Cable Flame Test

  • Standard: UL 758 AWM Style 2854

  • Application Scope: Internal wiring of electronic equipment only


Applications

  • Internal wiring in consumer electronics and instruments

  • Low-voltage power or signal cabling in control units

  • Compact installations needing flat/parallel multi-conductor layouts

 External Technical Reference

UL iQ™ Style Page – UL2854
