UL2990
UL2990 multi-conductor cable, 30V and 80°C rated, with PVC insulation and optional jacket, provides flexible, flame-resistant low-voltage wiring.

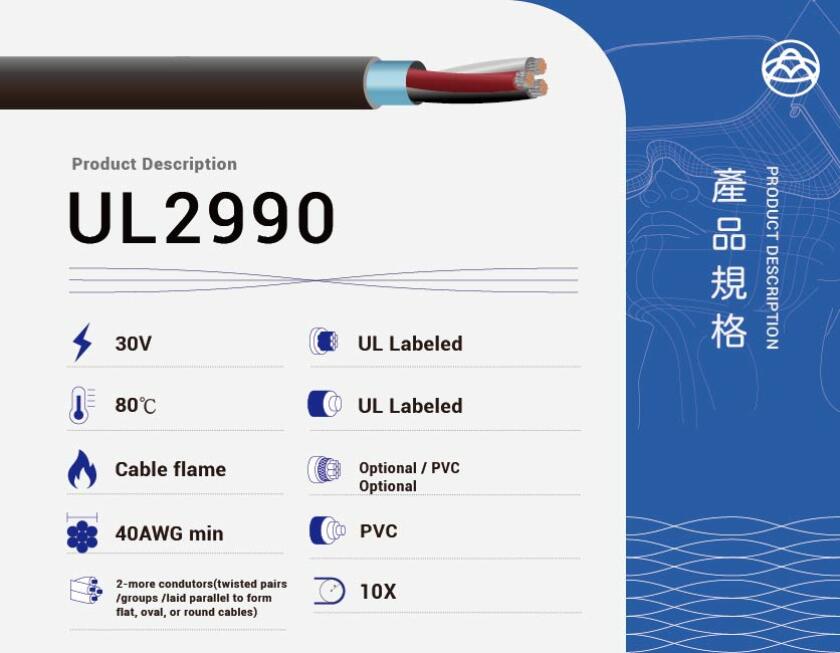

UL2990 PVC Cable – 80°C / 30V Cable for Internal Wiring of Electronic Equipment

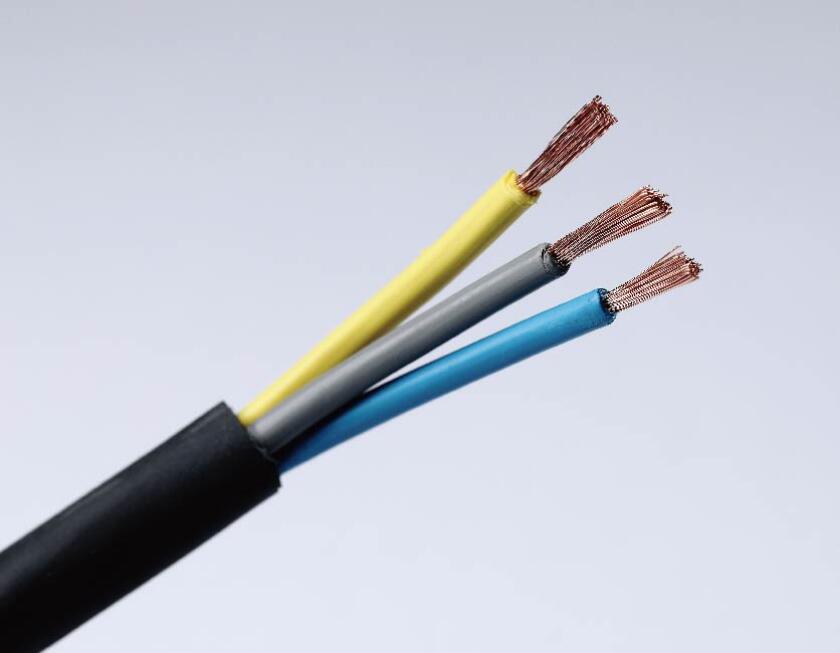

UL2990 is a UL-certified multi-conductor cable designed for the internal wiring of electronic equipment. Rated for 80°C and 30 Vac , this cable consists of two or more PVC-insulated solid or stranded copper conductors laid parallel, with an optional outer jacket. It complies with the Cable Flame Test per UL 758 standards, making it suitable for low-voltage internal wiring applications.
Key Features
Conductor: Solid or stranded copper (two or more conductors)
Insulation: Extruded PVC
Jacket: Optional
Rated Temperature: 80°C
Rated Voltage: 30 Vac
Flame Resistance: Passes Cable Flame Test
Standards: UL 758 AWM Style 2990
Use Case: Internal wiring of electronic equipment
Applications
Low-voltage internal wiring of electronic devices
Signal or power wiring in compact systems
Bundled multi-core internal cable for equipment or instruments
