UL20912

UL20912 multi-conductor cable, 600V and 105°C rated, with PVC insulation and jacket, offers durable, flame-resistant wiring for electronics.

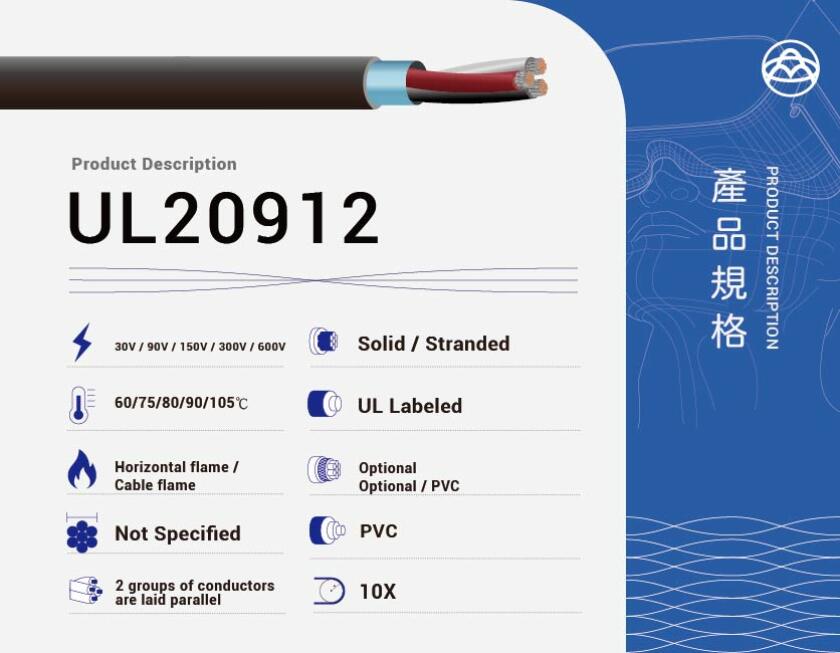

UL20912 PVC Insulated Cable – 105°C / 600V Multi-Conductor Cable for Internal Wiring Applications

UL20912 is a UL-certified multi-conductor cable designed for internal wiring in electronic and electrical equipment. Rated for 105°C and 600V, this cable features PVC insulation and an extruded non-integral jacket, providing excellent thermal resistance and mechanical protection.

Key Features

Conductor: Solid or stranded copper
Insulation: PVC, UL labeled or as per manufacturer's procedure
Assembly: Two groups of conductors laid parallel with an overall extruded PVC jacket joined by an interconnecting web
Jacket: Extruded PVC
Temperature Rating: Up to 105°C
Voltage Rating: 600V
Flame Resistance: Passes UL Cable Flame Test
Standards: Complies with UL 758 Appliance Wiring Material (AWM) Style 20912

Applications

Internal wiring in electronic devices, control panels, and industrial equipment
Applications requiring high thermal resistance and mechanical durability
Suitable for power supply connections, signal transmission, and control circuits
