UL2785 PVC Cable

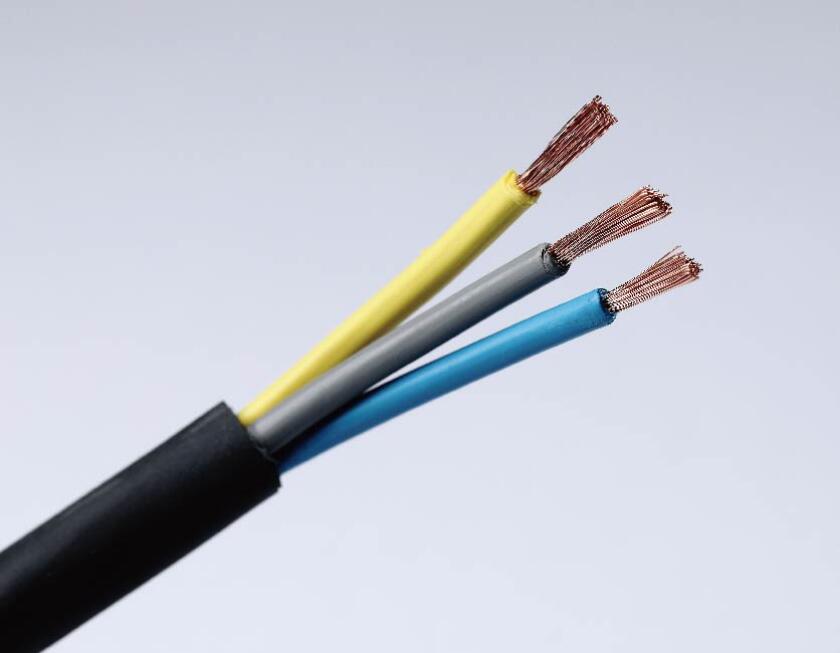

UL 2785 Multi-core Cable, rated 30V and 80°C, features PVC insulation with an optional outer jacket, ensuring flexible and flame-retardant low-voltage wiring.


UL 2785 PVC Insulated Cable

80°C / 30V PARALLEL CABLE FOR INTERNAL WIRING OF ELECTRONIC EQUIPMENT

Certification
UL-Certified Cable
Application Scope
Internal Wiring of Electronic Equipment
Temperature & Voltage
80°C / 30V (Rated Rating)
Conductor & Structure
Solid/Stranded Copper Arranged in Parallel & Extruded PVC Insulation (Optional Outer Jacket)
Standards & Features
UL 758 AWM Flame Retardant Standards
Ideal for low-voltage applications requiring both flexibility and flame retardancy

Key Features

UL 758 AWM STYLE 2785 SPECIFICATIONS

Conductors
Solid or Stranded Copper (Parallel Arrangement)
Insulation & Jacket
Extruded PVC Insulation (Optional Jacket)
Temperature & Voltage
80°C / 30V
Flame Retardancy
Passed UL Cable Flame Test
Standard & Application
UL 758 AWM Style 2785
Limited to internal wiring of electronic equipment

Common Applications

UL 2785 Application Scope & Reference
🔌

Consumer Electronics

  • Internal wiring for signal transmission
  • Power transmission in consumer devices
  • Low-voltage internal routing
📱

Compact Configurations

  • Flat cable configurations
  • Compact electronic devices
  • Space-saving internal layouts
⚙️

Control & Instrumentation

  • Flame-retardant parallel wiring
  • Instrumentation module connections
  • Control module internal wiring

Conductor Resistance Reference (at 20°C)

AWGResistance (Ω/km)
26 AWG13.70 Ω/km
24 AWG8.62 Ω/km
22 AWG5.44 Ω/km

Need technical assistance with UL 2785?

Contact our team to get accurate specifications and custom solutions for your application.

External Reference: UL iQ™ Style Page – UL 2785
