UL2569 flat ribbon cable with PVC insulation, UL-recognized and rated 105°C/600V. Provides durable, flexible, and safe wiring for appliances, control panels, and industrial machinery.

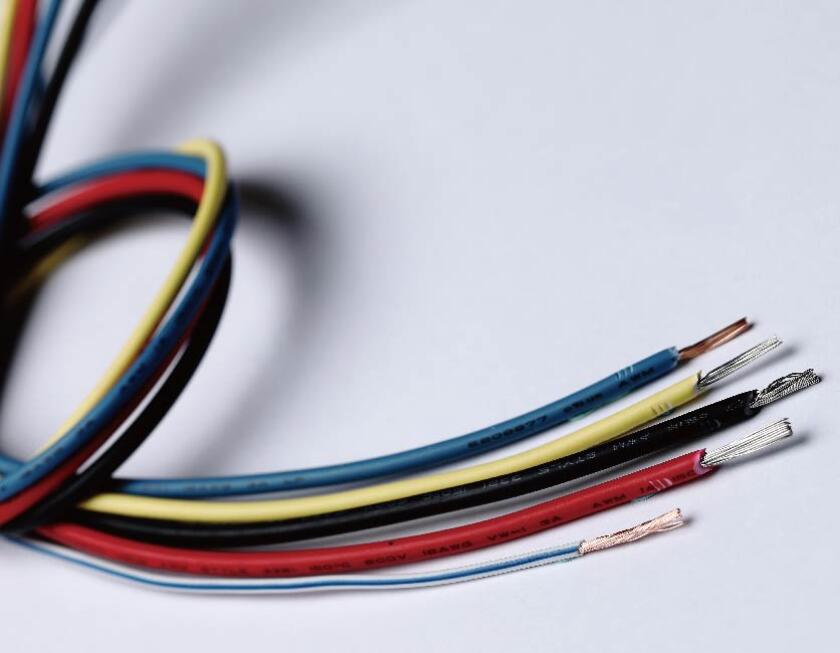

UL2569 Hook-Up Wire – 600V 105°C PVC-Insulated Flat Ribbon Cable for Internal Wiring Applications

UL2569 is a UL-recognized flat ribbon cable designed for internal wiring in electronic and electrical equipment. Rated for 600V and operating temperatures up to 105°C, it features durable Polyvinyl Chloride (PVC) insulation, ensuring reliable performance across various applications.

This wire is ideal for scenarios demanding dependable low-voltage connections and durability, such as control panels, appliances, and industrial machinery. Its flat design offers flexibility in routing while adhering to stringent safety standards.

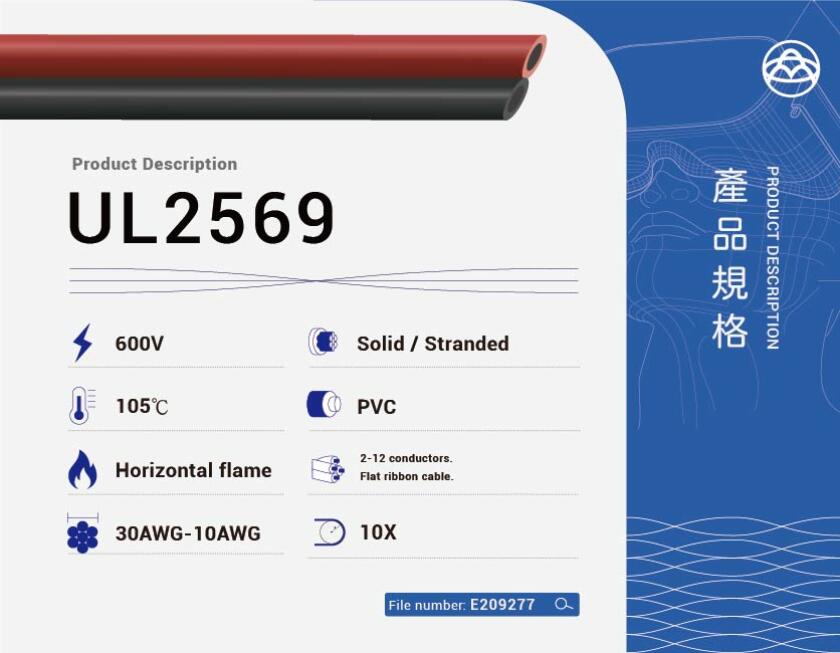

 Key Features

  • Voltage Rating: 600V

  • Temperature Rating: 105°C

  • Conductor Sizes: 30 AWG to 10 AWG, solid or stranded

  • Conductor Material: Bare or tinned copper

  • Insulation: Extruded PVC

    • Minimum Average Thickness: 30 mils

    • Minimum Thickness at Any Point: 27 mils

  • Flame Resistance: Passes UL Horizontal Flame Test

  • Standards Compliance: UL 758 AWM Style 2569

  • Environmental Compliance: RoHS & REACH Compliant


Applications

  • Internal wiring of electronic and electrical equipment

  • Control panels and industrial machinery

  • Appliances requiring reliable internal connections

  • Point-to-point wiring in meters and instrumentation

UL2569 wire is engineered to deliver consistent performance in various environments, offering flexibility, durability, and compliance with safety standards.
