UL20018 flat ribbon cable with XLPVC insulation, UL-recognized and rated 105°C/300V. Durable, flexible, and safe wiring for appliances, control panels, and industrial machinery.

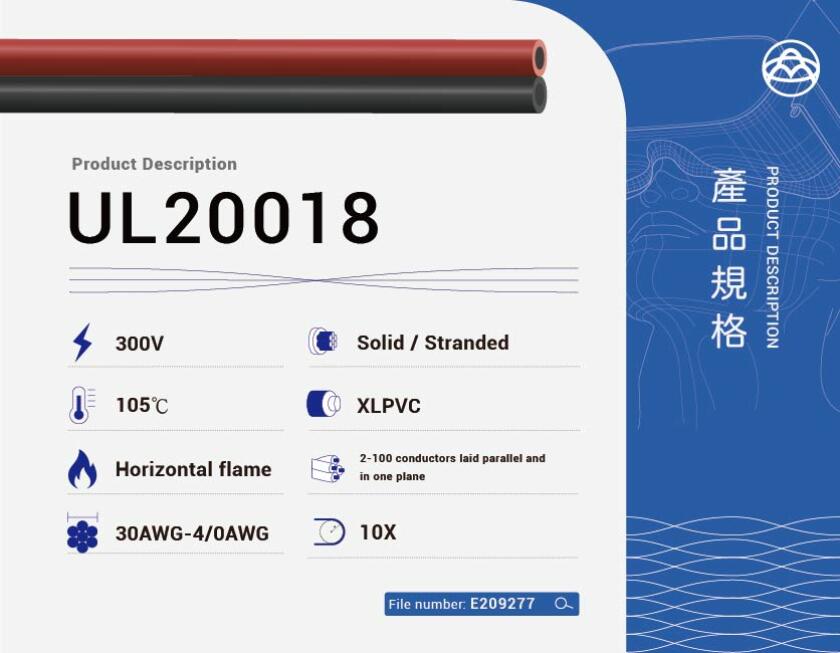

UL20018 Hook-Up Wire – 300V 105°C XL PVC-Insulated Flat Ribbon Cable for Internal Wiring Applications

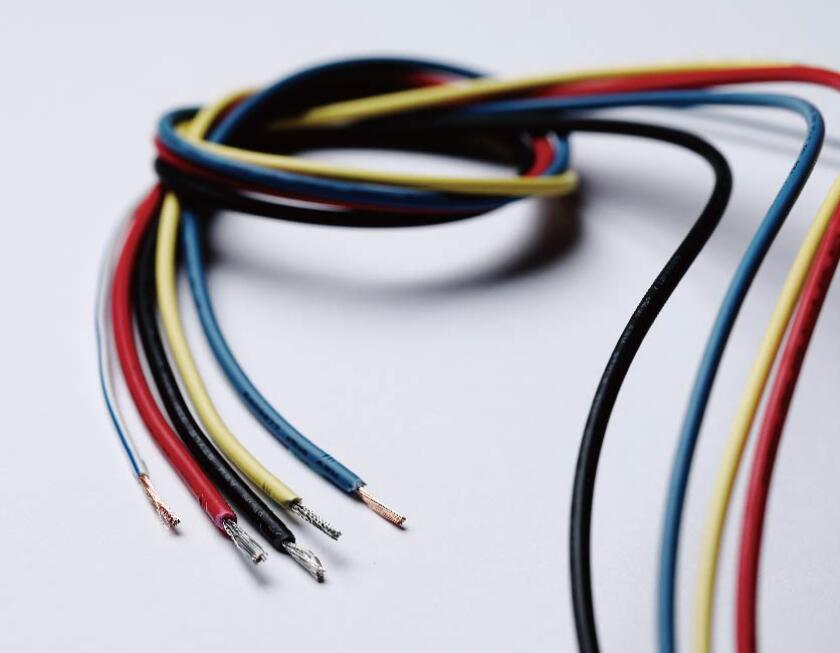

UL20018 is a UL-recognized flat ribbon cable designed for internal wiring in electronic and electrical equipment. Rated for 300V and operating temperatures up to 105°C, it features durable Cross-Linked Polyvinyl Chloride (XL PVC) insulation, ensuring reliable performance across various applications.

This wire is ideal for scenarios demanding dependable low-voltage connections and durability, such as control panels, appliances, and industrial machinery. Its flat design offers flexibility in routing while adhering to stringent safety standards.


 Key Features

  • Voltage Rating: 300V

  • Temperature Rating: 105°C

  • Conductor Sizes: 30 AWG to 4/0 AWG, solid or stranded

  • Conductor Material: Bare or tinned copper

  • Insulation: Extruded XL PVC

    • Minimum Average Thickness:

      • 30–16 AWG: 15 mils

      • 15–9 AWG: 30 mils

      • 8–6 AWG: 45 mils

      • 5–2 AWG: 60 mils

      • 1–4/0 AWG: 78 mils

  • Flame Resistance: Passes UL Horizontal Flame Test

  • Standards Compliance: UL 758 AWM Style 20018

  • Environmental Compliance: RoHS & REACH Compliant


Applications

  • Internal wiring of electronic and electrical equipment

  • Control panels and industrial machinery

  • Appliances requiring reliable internal connections

  • Point-to-point wiring in meters and instrumentation

UL20018 wire is engineered to deliver consistent performance in various environments, offering flexibility, durability, and compliance with safety standards.
