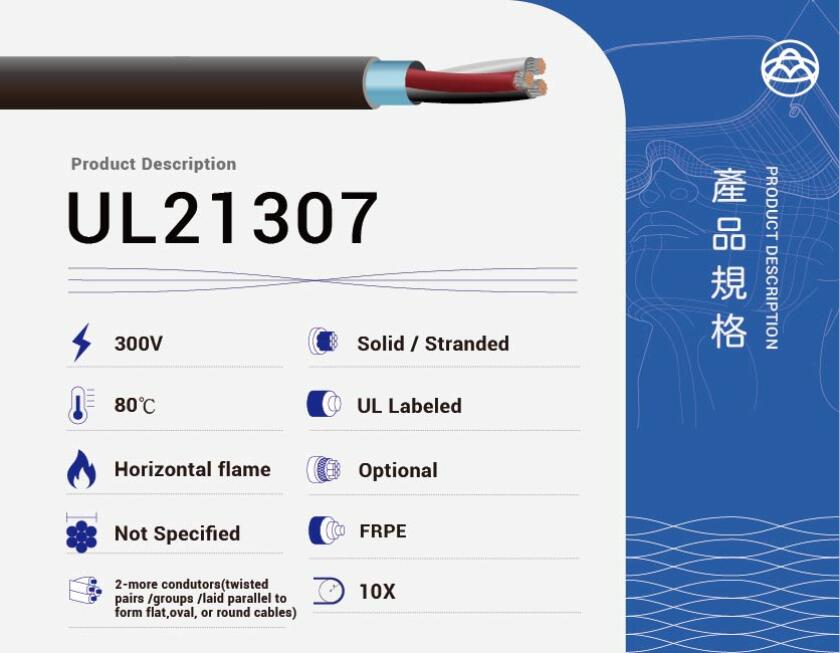

UL21307 multi-conductor cable, 300V and 80°C rated, with halogen-free FRPE insulation and jacket, provides safe, flexible, flame-resistant wiring.


UL21307 FRPE Insulated Cable – 80°C / 300V Multi-Conductor Wire for Internal Electronic Applications

UL21307 is a UL-certified multi-conductor cable designed for the internal wiring of electronic equipment. Rated for 80°C and 300V, this cable features solid or stranded tinned copper conductors, flame-retardant and halogen-free FRPE insulation, and an extruded FRPE jacket. It complies with the Horizontal Flame Test under UL 758 AWM standards, making it a suitable choice for compact signal, control, and communication circuits that demand safety and flexibility.


Key Features

  • Conductor: Solid or stranded tinned copper (minimum 40 AWG)

  • Insulation: Complies with the manufacturer’s AWM procedure (halogen-free FRPE)

  • Assembly: Two or more singles or twisted pairs, twisted or laid parallel to form flat, oval, or round cable

  • Jacket: Extruded FRPE, halogen-free

    • Minimum average thickness: 16 mils

    • Minimum thickness at any point: 13 mils

  • Temperature Rating: 80°C

  • Voltage Rating: 300V

  • Flame Resistance: Passes Horizontal Flame Test

  • Standard: UL 758 AWM Style 21307

  • Application: Internal wiring of electronic equipment


Applications

  • Internal wiring of industrial and commercial electronic devices

  • Signal transmission in control panels and I/O devices

  • Automation systems and machine-level communication wiring

  • Halogen-free environments requiring flame retardant construction
