UL20893

UL20893 multi-conductor cable, 600V and 105°C rated, with PVC insulation and jacket, ensures durable, flame-resistant wiring for electronic equipment.

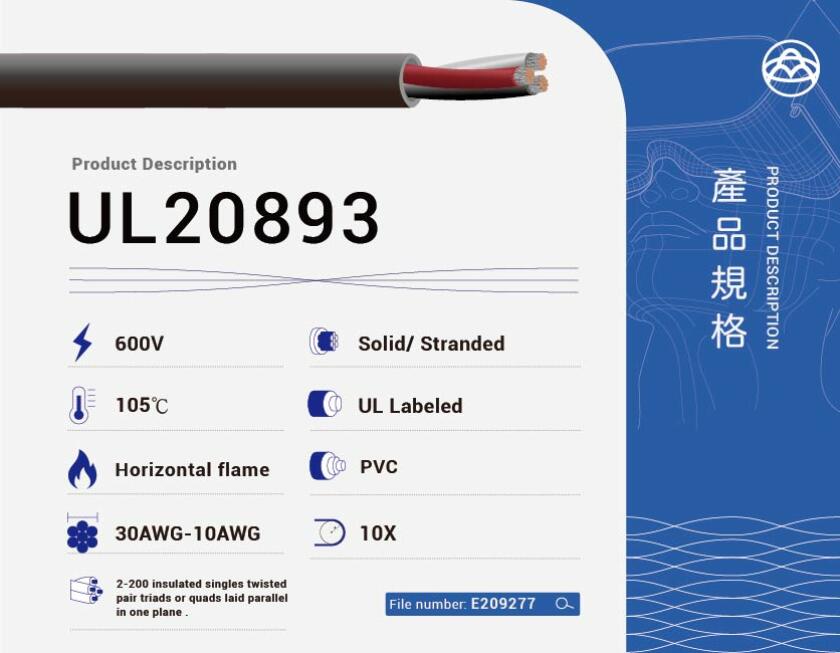

UL20893 PVC Insulated Cable – 105°C / 600V Multi-Conductor Cable for Internal Wiring Applications

UL20893 is a UL-certified multi-conductor cable designed for internal wiring in electronic and electrical equipment. Rated for 105°C and 600V, this cable features PVC insulation and an extruded non-integral jacket, providing excellent thermal resistance and mechanical protection.

Key Features

Conductor: Solid or stranded copper, available in sizes ranging from 30 to 10 AWG
Insulation: UL-labeled PVC, ensuring compliance with safety standards
Assembly: 2 to 200 insulated singles twisted into pairs, triads, or quads, laid parallel in one plane
Jacket: Extruded PVC, providing additional mechanical protection
Temperature Rating: Up to 105°C
Voltage Rating: 600V
Flame Resistance: Passes UL Horizontal Flame Test
Standards: Complies with UL 758 Appliance Wiring Material (AWM) Style 20893

Applications

Internal wiring in industrial machinery, control panels, and power distribution systems
Applications requiring high thermal resistance and mechanical durability
Suitable for power supply connections, signal transmission, and control circuits
