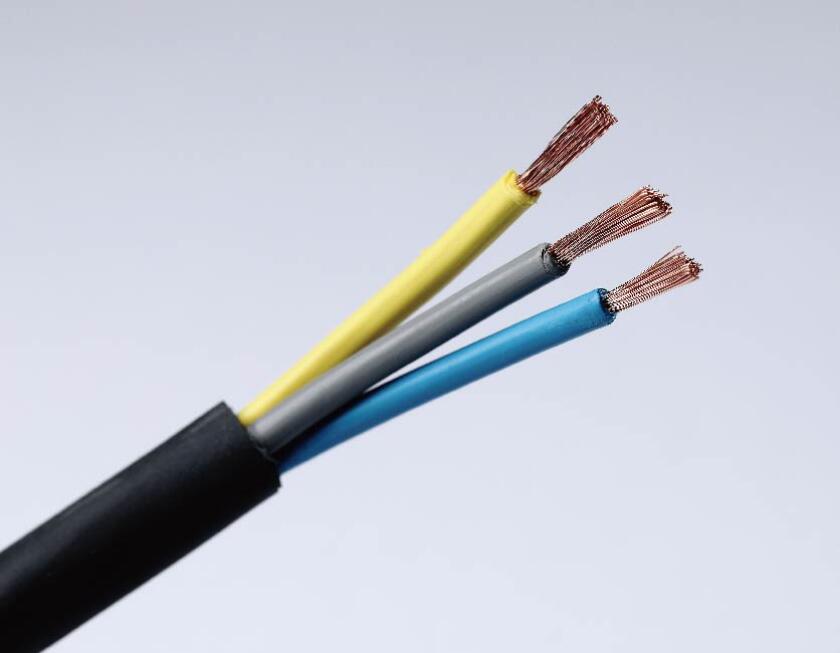

UL22080 multi-conductor cable, 600V and 105°C rated, with PVC insulation and jacket, offers durable, flame-resistant external wiring for electronics.


UL22080 PVC Insulated Cable – 105°C / 600V Multi-Conductor Cable for External Wiring Applications

UL22080 is a UL-certified multi-conductor cable designed for external wiring in electronic and electrical equipment. Rated for 105°C and 600V, this cable features PVC insulation and an extruded non-integral jacket, providing excellent thermal resistance and mechanical protection.


 Key Features

  • Conductor: Solid or stranded bare/tinned copper

  • Insulation: PVC, UL labeled or as per manufacturer's procedure

  • Assembly: Two or more conductors, twisted pairs or groups, laid parallel to form flat, oval, or round cables

  • Jacket: Extruded PVC

  • Temperature Rating: Up to 105°C

  • Voltage Rating: 600V

  • Flame Resistance: Passes UL Cable Flame Test

  • Standards: Complies with UL 758 Appliance Wiring Material (AWM) Style 22080

  • Usage: Designed for external wiring in electronic and electrical equipment


 Common Applications

  • External wiring in industrial machinery, control panels, and power distribution systems

  • Applications requiring high thermal resistance and mechanical durability

  • Suitable for power supply connections, signal transmission, and control circuits
