UL2960
UL2960 multi-conductor cable, 30V and 60°C rated, with PVC insulation, offers flexible, flame-resistant low-voltage wiring for compact electronics.
UL2960 PVC 絕緣電纜 – 60°C / 30V 多芯電纜，適用於電子設備內部配線
UL2960 是一款通過 UL 認證的多芯電纜，專為電子設備的內部配線設計。額定溫度為 60°C、電壓為 30V，由兩條或以上的實心或絞線銅導體平行排列，並使用擠出式 PVC 絕緣。符合 UL 758 AWM 標準的電纜阻燃測試，提供低電壓訊號或電源配線的穩定性能，特別適合緊湊型電子設備使用。

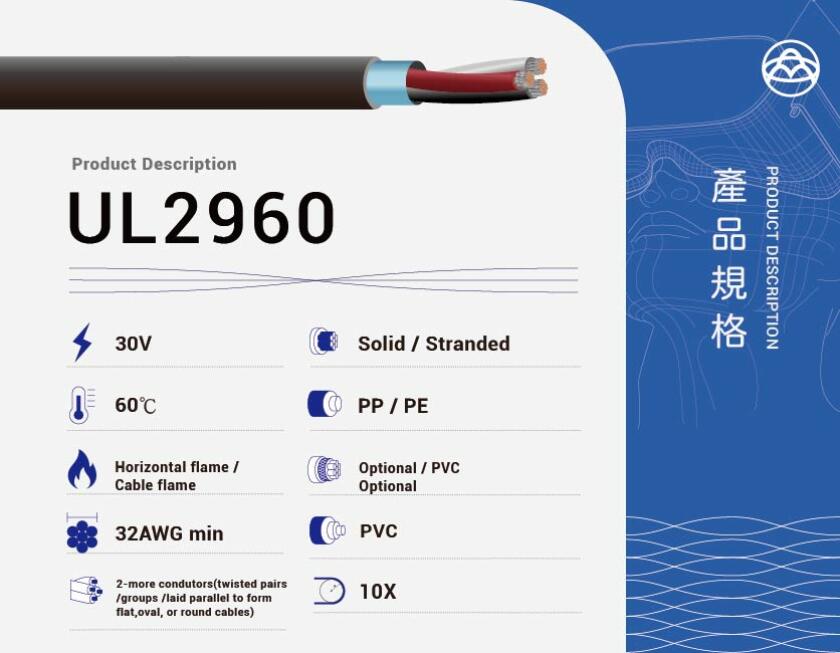

Key Features
Conductor: Solid or stranded copper (two or more laid parallel)
Insulation: Extruded PVC
Temperature Rating: 60°C
Voltage Rating: 30 V
Flame Test: Cable Flame
Jacket: Optional
Standards: UL 758 AWM Style 2960
Application Use: Internal wiring of electronic equipment only
Applications
Internal signal or power wiring in consumer electronics
Internal cabling for instruments, panels, or low-voltage devices
Compact applications requiring parallel multi-core wiring with flame resistance
