UL21254 UL-certified cable, rated 1000V and 80°C, with FRPE insulation and jacket, ensures flexible, flame-resistant wiring for electronics.

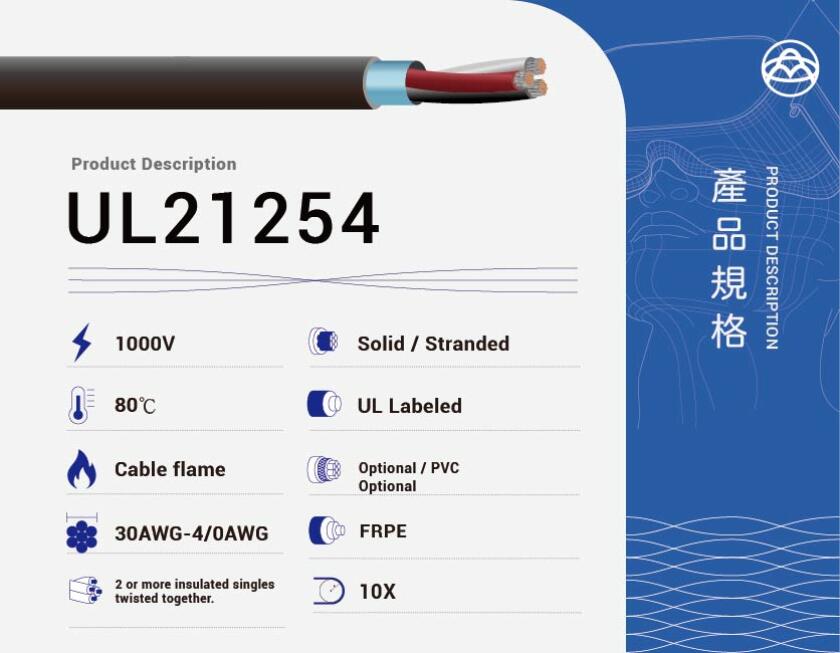

UL21254 FRPE Insulated Cable – 1000V / 80°C Multi-Conductor Wire for Internal and External Wiring

UL21254 is a UL-certified multi-conductor cable designed for both internal and external wiring of electronic and electrical equipment. Rated for 1000V and 80°C, this cable features solid or stranded copper conductors, flame-retardant FRPE insulation, and an extruded FRPE jacket. It complies with the Cable Flame Test under UL 758 AWM standards, making it suitable for applications requiring flexibility and flame resistance.


Key Features

  • Conductor: Solid or stranded round copper (30 AWG – 4/0 AWG)

  • Insulation: Complies with the manufacturer's AWM procedure

  • Assembly: Two or more insulated singles twisted together; optional fillers, shields, braids, and/or barrier layers

  • Jacket: Extruded FRPE

  • Temperature Rating: 80°C

  • Voltage Rating: 1000V

  • Flame Resistance: Passes Cable Flame Test

  • Standard: UL 758 AWM Style 21254

  • Application: Internal and external wiring of electronic equipment


Applications

  • Internal wiring in electronic devices

  • External connections in industrial control systems

  • Circuits requiring flame resistance and insulation durability

  • High-reliability internal and external cabling for sensitive systems

External Technical Reference

UL iQ™ Style Page – UL21254
