UL1803
UL1803 hook-up wire with PVC insulation, UL-recognized and rated 80°C/2000V. Provides durable, flexible, and safe wiring for test probes, measurement devices, and high-voltage equipment.

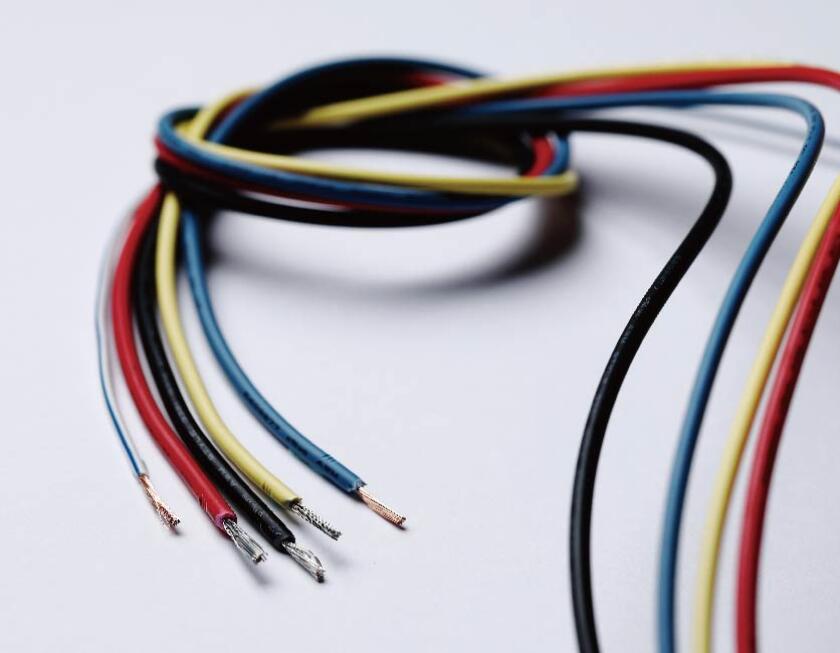

UL1803 Hook-Up Wire – 80°C 2000V PVC-Insulated Wire for Test and Measurement Applications
UL1803 is a UL-recognized single-conductor hook-up wire designed for use in electrical and electronic measuring and test equipment. Rated for 2000V and operating temperatures up to 80°C, it features durable Polyvinyl Chloride (PVC) insulation, ensuring reliable performance in demanding applications.
This wire is ideal for scenarios requiring high-voltage connections and durability, such as test probes and measurement devices. Its robust construction offers flexibility in routing while adhering to stringent safety standards.

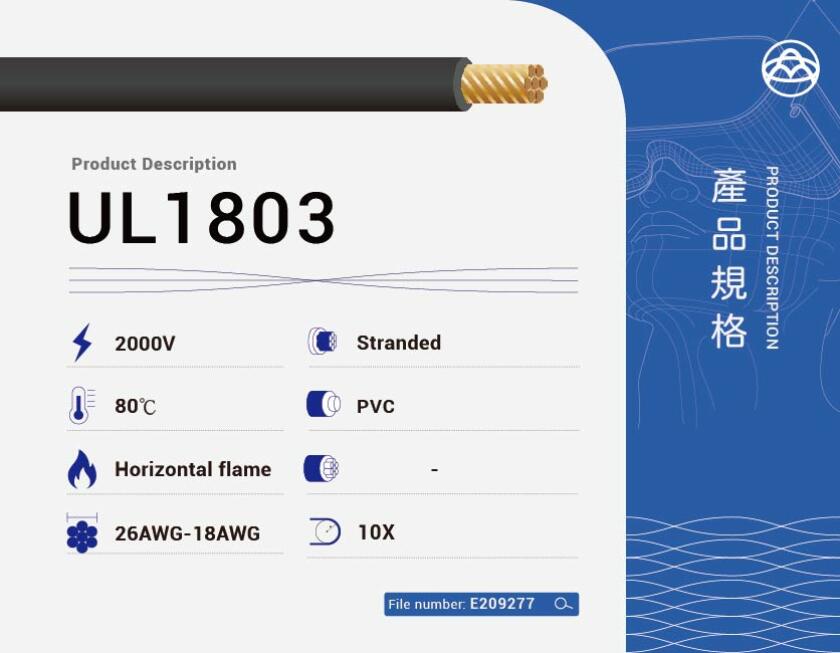

Key Features
Voltage Rating: 2000V
Temperature Rating: 80°C
Conductor Sizes: 26 AWG to 18 AWG, stranded
Conductor Material: Bare or tinned copper
Insulation: Extruded PVC
Minimum Average Thickness: 45 mils
Minimum Thickness at Any Point: 40 mils
Flame Resistance: Passes UL Horizontal Flame Test
Standards Compliance: UL 758 AWM Style 1803
Environmental Compliance: RoHS & REACH Compliant
Applications
Electrical and electronic measuring equipment
Test probes and test leads
Laboratory and industrial testing environments
High-voltage internal wiring applications
UL1803 wire is engineered to deliver consistent performance in various environments, offering flexibility, durability, and compliance with safety standards.
