UL11336

UL11336 hook-up wire with PVC insulation and nylon jacket, UL-recognized and rated 105°C/600V. Durable, abrasion-resistant wiring for appliances, control panels, and industrial machinery.

UL11336 Hook-Up Wire – 600V 105°C PVC-Insulated Wire with Nylon Jacket for Internal Wiring Applications

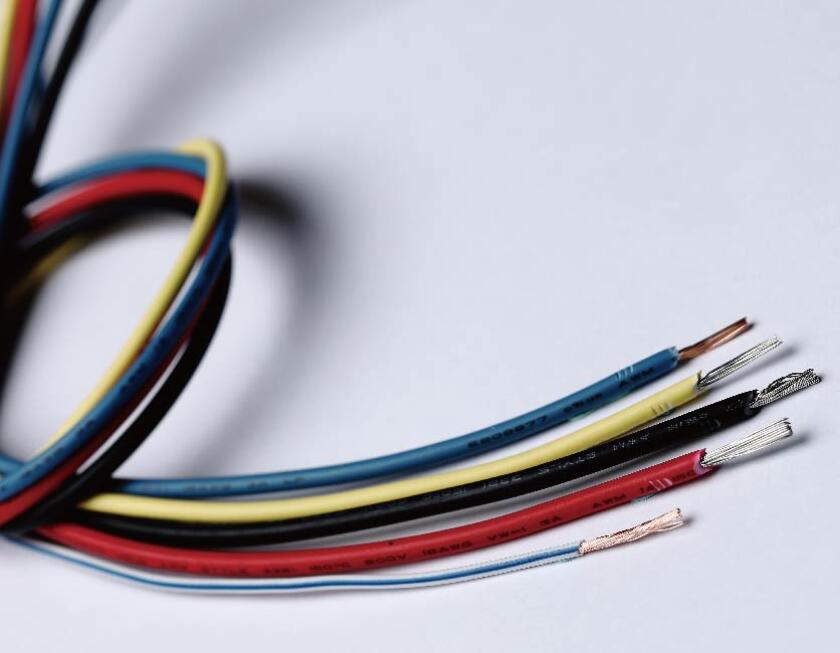

UL11336 is a UL-recognized single-conductor hook-up wire designed for internal wiring in electronic and electrical equipment. Rated for 600V AC and operating temperatures up to 105°C, it features durable Polyvinyl Chloride (PVC) insulation with an additional nylon (polyamide) outer jacket, ensuring enhanced mechanical strength and resistance to abrasion, moisture, and chemicals.

This wire is ideal for scenarios demanding dependable high-voltage connections and durability, such as control panels, appliances, and industrial machinery. Its design offers flexibility in routing while adhering to stringent safety standards.

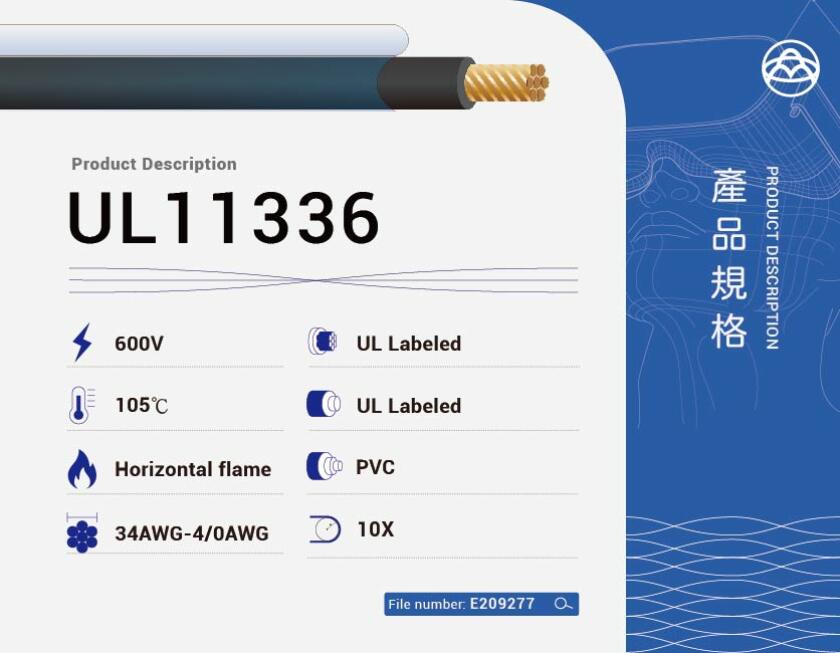

Key Features

Voltage Rating: 600V AC
Temperature Rating: 105°C
Conductor Sizes: 30 AWG to 2000 kcmil, solid or stranded
Conductor Material: Bare or tinned copper
Insulation: Extruded PVC with nylon jacket
- Minimum Average Thickness: Varies by AWG size
- Minimum Thickness at Any Point: Varies by AWG size
Flame Resistance: Passes UL Horizontal Flame Test
Standards Compliance: UL 758 AWM Style 11336
Environmental Compliance: RoHS & REACH Compliant

Applications

Internal wiring of electronic and electrical equipment
Control panels and industrial machinery
Appliances requiring reliable internal connections
Point-to-point wiring in meters and instrumentation

UL11336 wire is engineered to deliver consistent performance in various environments, offering flexibility, durability, and compliance with safety standards.
