UL1533
UL1533 shielded hook-up wire with SRPVC insulation, copper spiral shield, and PVC jacket, UL-certified and rated 80°C. Provides durability and signal reliability for audio, instrumentation, and communication wiring.
UL1533 Shielded Hook-Up Wire – 80°C PVC-Insulated Cable for Electronic Applications

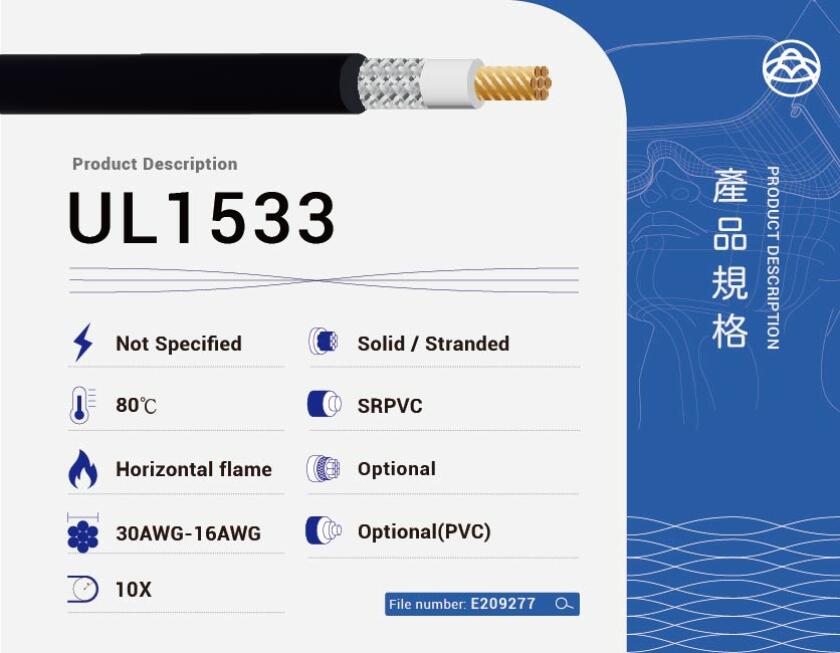

UL1533 shielded hook-up wire is a UL-certified single-conductor wire designed for internal wiring in electronic equipment. Rated at 80°C, it features a semi-rigid PVC (SRPVC) insulation, an optional tinned or bare copper spiral shield, and an extruded PVC jacket, providing enhanced mechanical protection and flame resistance.
This wire is suitable for applications requiring reliable signal transmission and durability, such as in audio systems, instrumentation, and communication equipment. Its construction allows for flexibility in routing while maintaining compliance with safety standards.
Key Features
Temperature Rating: 80°C
Conductor Sizes: 30 AWG to 16 AWG, solid or stranded
Insulation: Extruded SRPVC, 9 mils minimum average thickness
Shielding: Optional tinned or bare copper spiral shield
Jacket: Optional extruded PVC, 12 mils minimum average thickness
Flame Resistance: Complies with UL VW-1 and CSA FT1 flame tests
Standards Compliance: UL 758 AWM Style 1533
Applications
Internal wiring of electronic devices and equipment
Signal and data transmission in audio and communication systems
Instrumentation and measurement equipment
Industrial automation and control systems
UL1533 wire is engineered to deliver consistent performance in various environments, offering flexibility, durability, and compliance with safety standards.
