UL1317
UL1317 hook-up wire with PVC insulation and nylon jacket, UL-certified and rated 90°C/105°C at 600V. Provides abrasion and oil resistance for appliances, control systems, and building wiring.
UL1317 Nylon Jacketed Wire – 600V PVC-Insulated Wire with Nylon Sheath for Internal Electrical Wiring

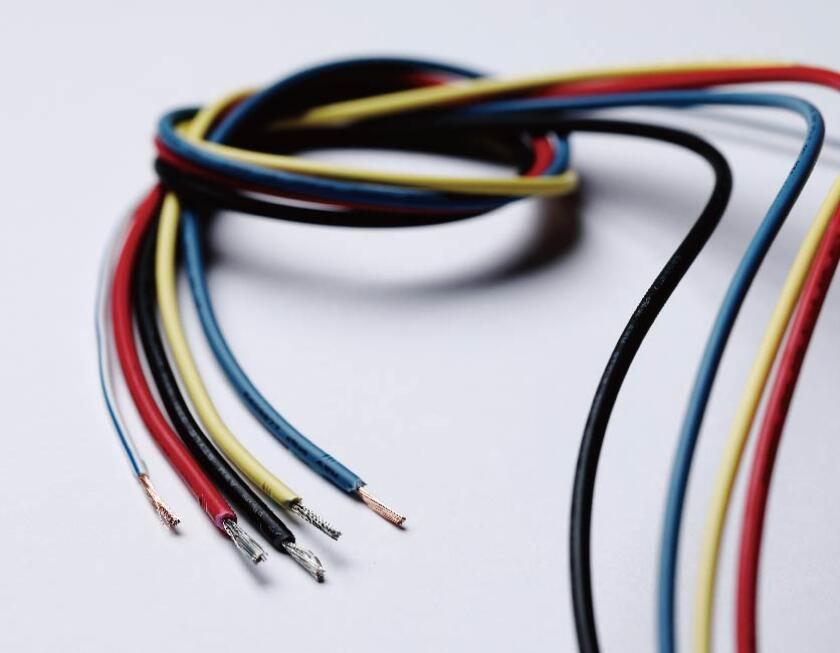

UL1317 wire is a UL-certified single-conductor hook-up wire with a PVC insulation and a nylon outer jacket, designed for use in household appliances, industrial control systems, and building wiring. Rated for 600V and operating temperatures of 90°C or 105°C, it offers outstanding durability, abrasion resistance, and oil resistance for demanding electrical environments.
Structurally similar to THHN (Thermoplastic High Heat-Resistant Nylon-coated) wire, UL1317 is manufactured with solid or stranded copper conductors, available tinned or bare. It is suitable for internal wiring in power devices and equipment requiring long-term mechanical protection and thermal stability.

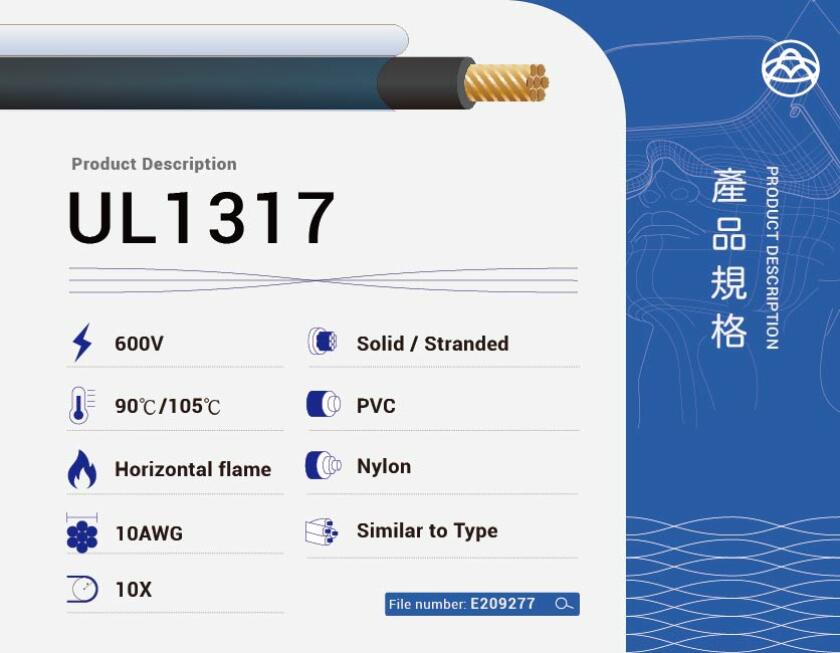

Key Features
Voltage Rating: 600V
Temperature Rating: 90°C or 105°C
Conductor: Solid or stranded, bare or tinned copper (commonly 10 AWG)
Insulation: Extruded PVC, minimum 18 mils (avg. 20 mils)
Jacket: Extruded nylon coating, minimum 4 mils
Flame Resistance: Passes UL horizontal flame test
Oil Resistance: Withstands oil exposure at 60°C or 80°C
Standards: UL 758 AWM Style 1317
RoHS Compliant
Applications
Internal wiring of home appliances (e.g., refrigerators, dryers, air conditioners)
Industrial machine and control panel wiring
Electrical systems and power distribution in buildings
High-wear environments requiring oil- and abrasion-resistant wire
Equipment where mechanical protection and routing strength are essential
UL1317 wire is widely used by OEMs and electrical system integrators due to its reliable construction and resistance to environmental stress.
