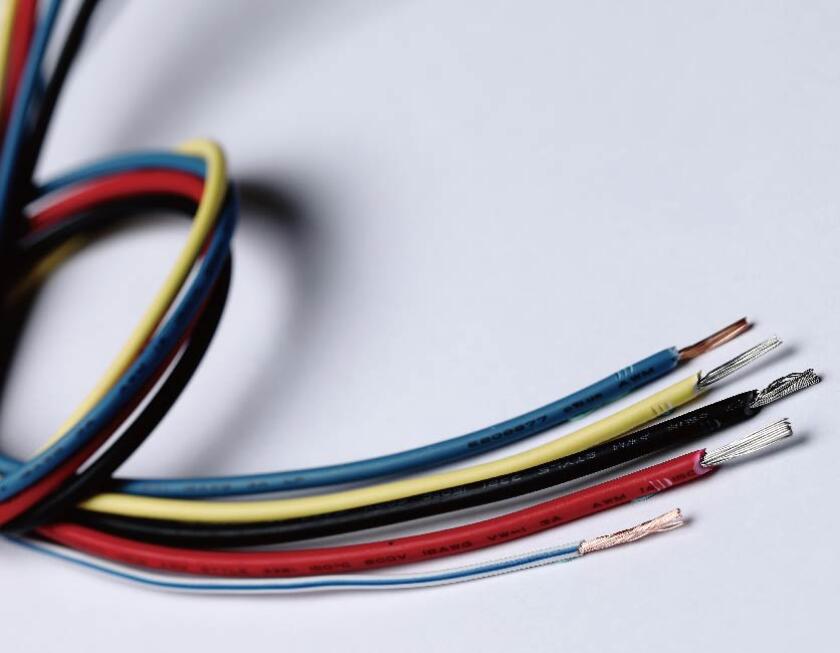

UL1789
UL1789 is a versatile hook-up wire for internal equipment wiring, supporting 40–18 AWG solid or stranded conductors. It features various insulation options—including PVC, FRPE, XLPE, and foamed variants—to provide flexibility for diverse application needs.
UL1789 Hook-Up Wire – 30V 60/80°C Insulated Wire for Internal Electronic Applications
UL1789 is a versatile hook-up wire suitable for internal wiring of electronic and electrical equipment. It accommodates conductor sizes ranging from 40 AWG to 18 AWG, available in both solid and stranded configurations. The insulation options include extruded PVC, FRPE, XLPE, and their foamed variants, providing flexibility to meet various application requirements.
Features
Voltage Rating: 30V
Temperature Rating: 60°C or 80°C, depending on insulation material
Conductor Sizes: 40 AWG to 18 AWG, solid or stranded
Insulation Materials: Extruded PVC, FRPE, XLPE, and their foamed variants
Flame Resistance: Passes UL Horizontal Flame Test
Standards Compliance: UL 758 AWM Style 1789
Environmental Compliance: RoHS & REACH Compliant
Application
Internal wiring of electronic and electrical equipment
Control panels and instrumentation
Low-voltage signal transmission
Compact electronic assemblies
UL1789 wire is engineered to deliver consistent performance in various environments, offering flexibility, durability, and compliance with safety standards.
