UL1316
UL1316 hook-up wire with PVC insulation and nylon jacket, UL-recognized and rated 105°C/600V. Provides abrasion resistance, chemical durability, and reliable wiring for appliances and industrial equipment.

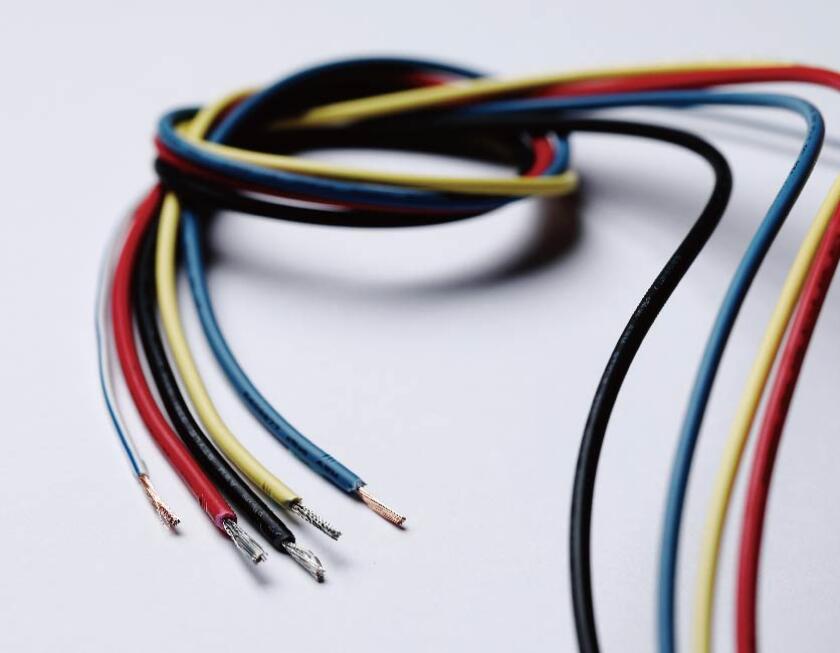

UL1316 Nylon Coated wire – 600V 105°C PVC/Nylon Insulated Wire for Internal Wiring Applications
UL1316 is a UL-recognized single-conductor hook-up wire designed for internal wiring in appliances, industrial equipment, and control panels. Rated for 600V and operating temperatures up to 105°C (with copper conductors), UL1316 features a durable PVC insulation with an additional extruded nylon jacket, providing enhanced mechanical strength, abrasion resistance, and chemical durability.
This wire is suitable for applications requiring reliable performance in demanding environments, offering flexibility and compliance with safety standards.

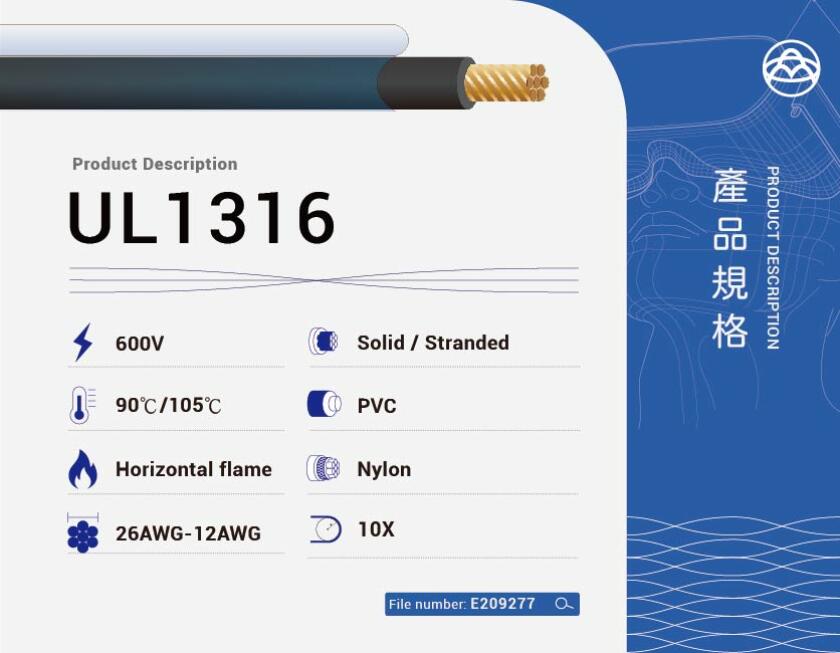

Key Features
Voltage Rating: 600V
Temperature Rating: 105°C (with copper conductors); 90°C (with aluminum conductors)
Conductor Sizes: 26 AWG to 12 AWG, solid or stranded copper; 12 AWG solid aluminum
Insulation: Extruded PVC, 15 mils minimum average thickness
Jacket: Extruded nylon, 4 mils minimum thickness
Flame Resistance: Passes UL horizontal flame test
Oil Resistance: Optional ratings for 60°C or 80°C oil and gasoline resistance
Standards Compliance: UL 758 AWM Style 1316
RoHS Compliant
Applications
Internal wiring of household appliances
Industrial machinery and control panels
Building wiring systems
Environments requiring abrasion and chemical resistance
UL1316 wire is engineered to deliver consistent performance in various environments, offering flexibility, durability, and compliance with safety standards.
