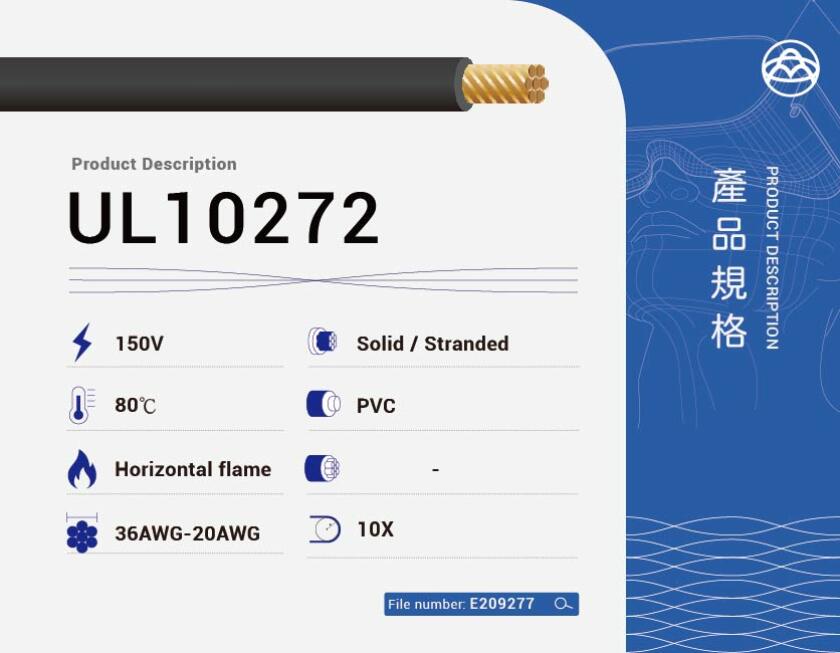

UL10272
UL10272 PVC-insulated wire, UL-certified and rated 80°C/150V. Compact and flexible for low-voltage electronic wiring, device internals, or use in PVC-jacketed cable assemblies.

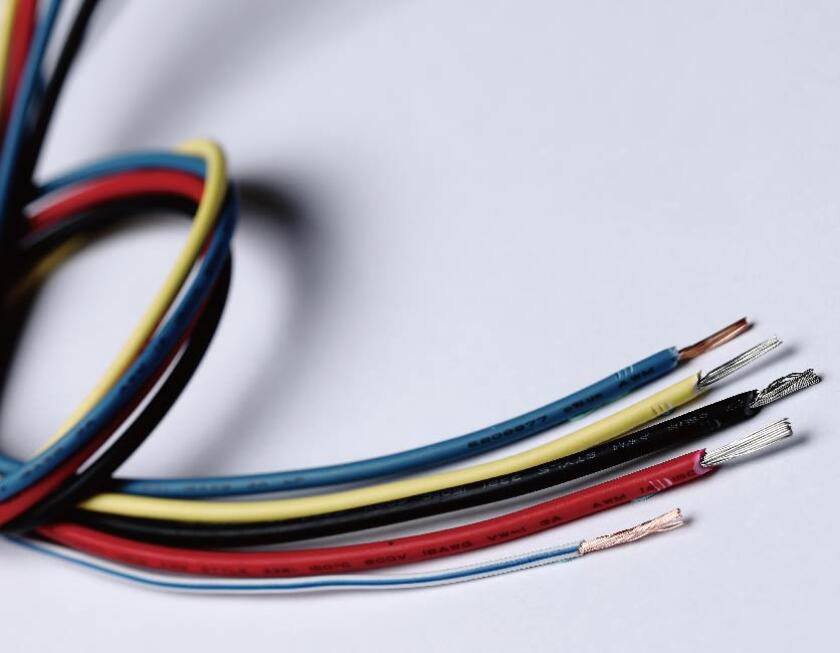

UL10272 PVC Insulated Wire – 80°C / 150V Hook-Up Wire for Internal Electronic Wiring
UL10272 is a UL-certified single-conductor wire insulated with extruded PVC. Rated for 80°C and 150V, this style is specifically designed for internal wiring of electronic devices and for further processing in PVC-jacketed cables. With its compact insulation profile and optional shielding, UL10272 is ideal for low-voltage, space-sensitive electronic applications.
Key Features
Conductor: Solid or stranded, bare or tinned copper (available from 36 AWG to 20 AWG)
Insulation: Extruded PVC, with a minimum average thickness of 6 mils and 5 mils minimum at any point
Temperature Rating: Up to 80°C
Voltage Rating: 150V AC
Flame Test Compliance: Horizontal flame test
Shielding: Optional
Covering (Jacket): Optional extruded PVC jacket (5 mils minimum, 80 mils maximum)
Standards: UL 758 (Appliance Wiring Material)
Application: For use in PVC-jacketed cables and internal wiring of electronic equipment
Applications
Internal wiring for electronic control boards and sensors
Signal transmission in data acquisition systems
Integration into custom multi-core cable assemblies
Low-voltage and low-temperature internal electronic devices
