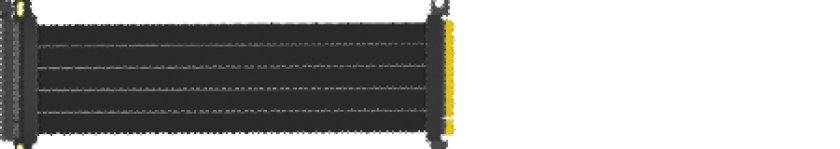

SlimLine (SFF-8654) & OcuLink (SFF-8611) 8i PCIe cables support Gen3/Gen4 up to 16Gbps. Ultra-thin 1.25 mm design with SATA power, 180° bend, ideal for U.2, U.3, M.2, and M.3 modules.


SlimLine (SFF-8654) & OcuLink (SFF-8611) 8i PCIe Cable | Gen.3/4 NVMe U.2 / U.3 / M.2 / M.3 Solutions


 SlimLine (SFF-8654) and OcuLink (SFF-8611) 8i PCIe cables offer robust high-speed connectivity for Gen.3 (8Gbps) and Gen.4 (16Gbps) applications. Designed with ultra-thin 1.25 mm halogen-free cables, they support a wide range of SSD and PCIe modules including U.2, U.3, M.2, and M.3 (NF1), with integrated SATA power lines and flexible 180° bendable design.


Key Features

  • Interface Support: PCIe Gen.3 (8Gbps), Gen.4 (16Gbps)

  • Connector Types:

    • SlimLine SFF-8654 8i

    • OcuLink SFF-8611 8i

  • Cable Thickness: 1.25 mm, halogen-free

  • Power Support: 3.3V / 12V for SSDs

  • Bendability: 180°, stable impedance

  • Configurations:

    • U.2 / U.3 (SFF-8639)

    • M.2 75F, M.3 (NF1)

    • PCIe x4 (64M)

    • SATA power-integrated

    • Vertical adapters and dual-row headers

  • Lengths: Standard 50–100 cm, customizable


Applications

  • NVMe SSD interface for U.2 / U.3 / M.2 / M.3

  • PCIe x4 signal and power extension

  • Industrial computers, high-speed storage servers

  • AI accelerators, HPC platforms, GPU enclosures

  • OEM PCIe signal routing with compact cabling
