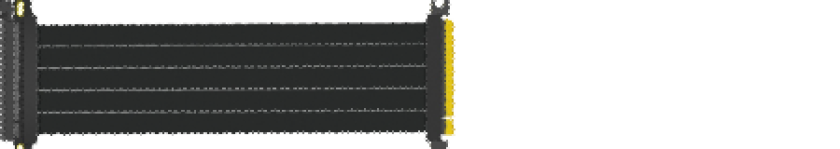

PCIe Gen4 Flexible Cable series supports up to 16Gbps per lane for X1–X16. Ultra-thin 1.25 mm halogen-free design offers 180° flexibility and signal integrity for servers, GPUs, and AI platforms.

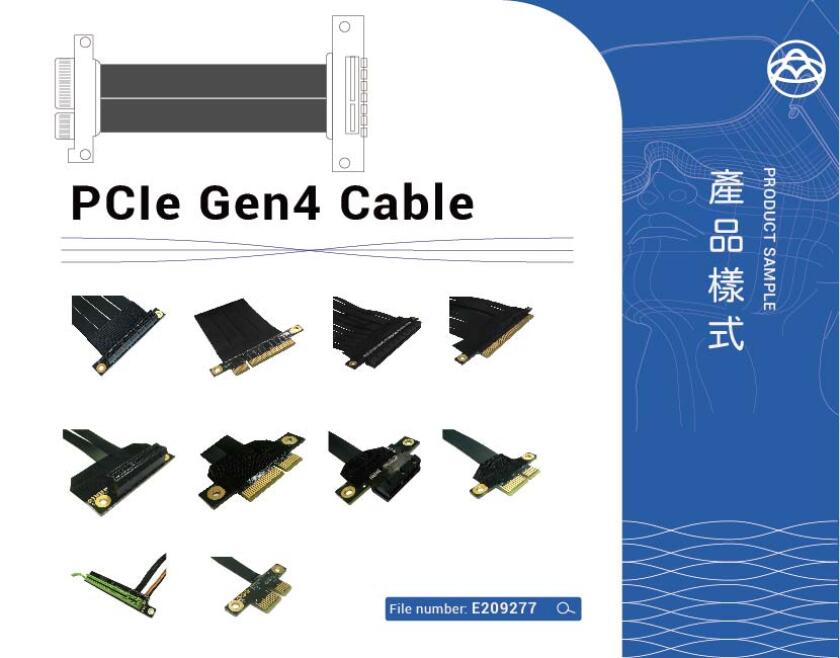

PCIe Gen.4 Flexible Cable | X1, X4, X8, X16 Extension for High-Speed Signal Integrity


PCIe Gen.4 Flexible Cable series provides high-speed signal extension for PCIe X1, X4, X8, and X16 lanes. Designed for compact servers, GPU workstations, and embedded AI platforms, it supports up to 16 Gbps per lane without needing repeaters or EQ chips. The 1.25 mm ultra-thin, halogen-free cable ensures 180° flexibility with excellent signal integrity.


Key Specifications

  • Supported PCIe Lanes: X1, X4, X8, X16

  • Transmission Speed: PCIe Gen.3 (8 Gbps), Gen.4 (16 Gbps)

  • Cable Thickness: 1.25 mm ultra-thin flexible cable

  • Power Support: 3.3V / 12V

  • Length: 0.6 m to 1 m (customizable)

  • Bendability: 180° stable impedance design

  • Special Feature: No repeater or EQ chip required

  • Origin & Patents: Made in Taiwan, patented globally


Applications

  • High-speed GPU extension for AI or HPC modules

  • Internal PCIe lane rerouting in small form factor systems

  • Signal transfer for riser cards, GPU enclosures, and test equipment

  • Server boards requiring high-density PCIe cable organization

  • Multi-channel PCIe X8 / X16 applications with stable routing
