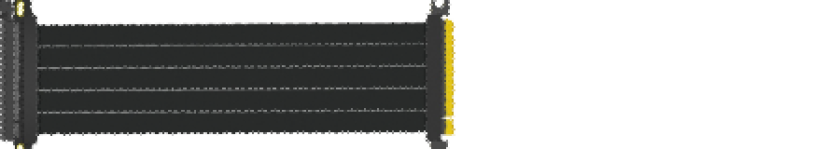

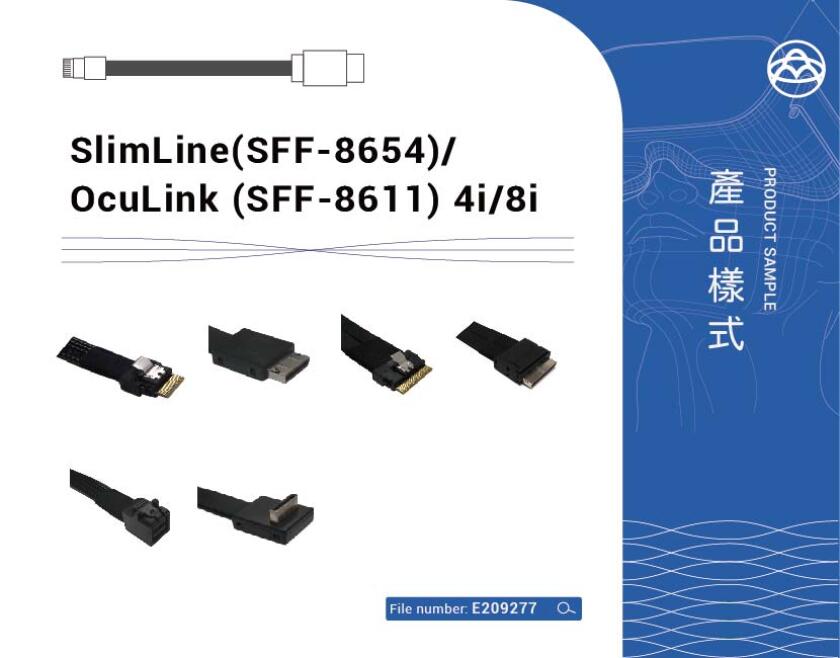

SlimLine(SFF-8654)/OcuLink (SFF-8611) 4i/8i
3A PLUS PCIe Gen3/Gen4 cable assemblies with SlimLine and OcuLink connectors, 4i/8i options. Ultra-thin 1.25 mm design supports 16Gbps, 180° bend, ideal for NVMe, GPU, and AI systems.
SlimLine (SFF-8654) / OcuLink (SFF-8611) 4i / 8i PCIe Cable | Gen.3/Gen.4 NVMe, AI, and HPC Solutions
3A PLUS provides high-performance PCIe Gen.3 and Gen.4 cable assemblies using SlimLine (SFF-8654) and OcuLink (SFF-8611) connectors, available in both 4i and 8i configurations. Designed with a 1.25 mm ultra-thin halogen-free cable, these solutions support up to 16Gbps transmission and stable 180° bending. Ideal for NVMe storage, GPU servers, and modular AI computing.
Features
Transmission Rate: PCIe Gen.3 (8Gbps), Gen.4 (16Gbps)
Connector Types: SFF-8654 (SlimLine), SFF-8611 (OcuLink)
Supported Channels: 4i / 8i
Cable Thickness: 1.25 mm ultra-thin, halogen-free
Power Support: OcuLink supports 3.3V / 5V
Length Range: Up to 100 cm (custom lengths available)
Bendability: 180° flexible structure
Chip: No repeater or EQ chip required
Origin: Made in Taiwan, with international patents
Applications
U.2 / U.3 / M.2 / M.3 SSD interface extension
PCIe x4 or x8 signal transmission for high-speed servers
GPU/AI module wiring for HPC and edge computing
Compact modular computing or storage nodes
Industrial or embedded systems requiring stable PCIe routing
