UL3463
UL3463 hook-up wire with XLPE insulation and optional jacket, UL-recognized and rated 105°C/30V. Provides durable, flexible, and safe wiring for appliances, control panels, and industrial machinery.
UL3463 Hook-Up Wire – 30V 105°C XLPE-Insulated Wire for Class 2 Circuit Internal Wiring

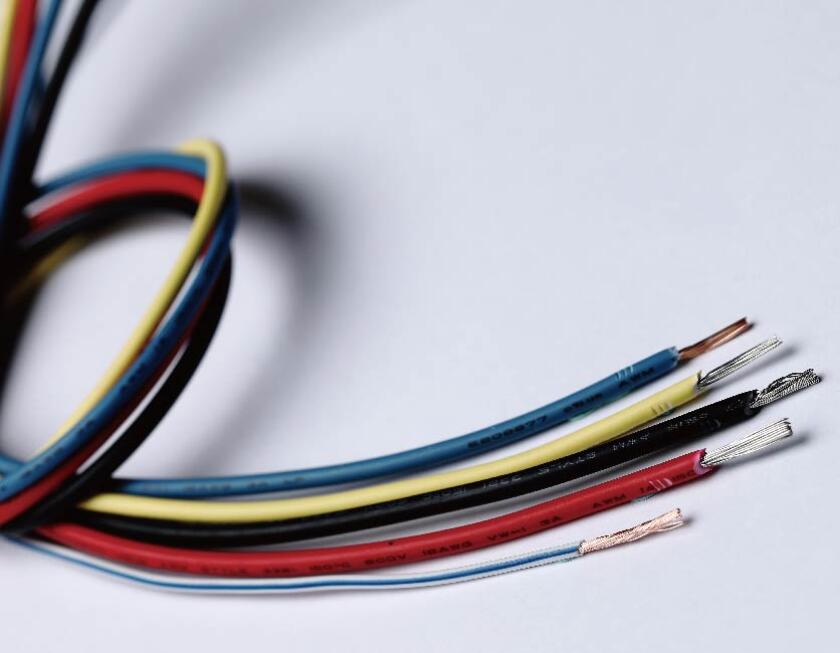

UL3463 is a UL-recognized single-conductor hook-up wire designed for internal wiring of Class 2 circuits in electronic and electrical equipment. Rated for 30V AC and operating temperatures up to 105°C, it features durable Cross-Linked Polyethylene (XLPE) insulation and an optional PVC or XLPVC jacket, ensuring reliable performance across various applications.
This wire is ideal for scenarios demanding dependable low-voltage connections and durability, such as control panels, appliances, and industrial machinery. Its design offers flexibility in routing while adhering to stringent safety standards.

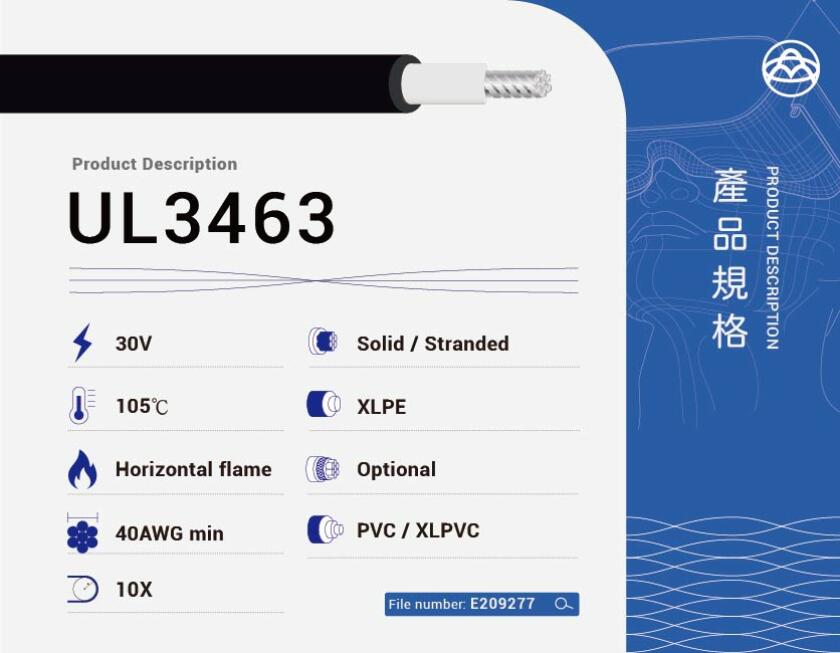

Key Features
Voltage Rating: 30V
Temperature Rating: 105°C
Conductor Sizes: 40 AWG minimum
Conductor Material: Not specified
Insulation: Solid or cellular extruded XLPE
Minimum Thickness at Any Point: 4 mils
Maximum Thickness: 100 mils
Jacket: Extruded PVC or extruded XLPVC (may be irradiated)
Minimum Thickness at Any Point: 5 mils
Maximum Thickness: 100 mils
Flame Resistance: Passes UL Horizontal Flame Test
Standards Compliance: UL 758 AWM Style 3463
Environmental Compliance: RoHS & REACH Compliant
Applications
Internal wiring of Class 2 circuits in electronic and electrical equipment
Control panels and industrial machinery
Appliances requiring reliable internal connections
Point-to-point wiring in meters and instrumentation
UL3463 wire is engineered to deliver consistent performance in various environments, offering flexibility, durability, and compliance with safety standards.
